Example 2: Applying a spleen segmentation model from MONAI in MeVisLab

Introduction

In the following, we will perform a spleen segmentation using a model from the MONAI Model Zoo. The MONAI Model Zoo is a collection of pre-trained models for medical imaging, offering standardized bundles for tasks like segmentation, classification, and detection across MRI, CT, and pathology data, all built for easy use and reproducibility within the MONAI framework. Further information and the required files can be found here.

This example shows how to use the model for Spleen CT Segmentation directly in MeVisLab.

Steps to do

Download necessary files

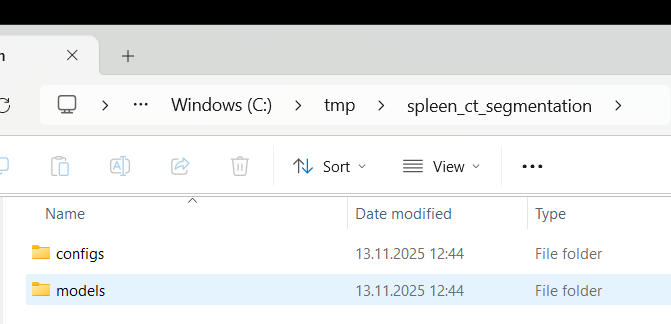

Create a folder named spleen_ct_segmentation somewhere on your system. Inside this folder, create two subfolders, one named configs and another named models and remember their paths.

Download all config files from MONAI-Model-Zoo and save them in your local configs directory.

Download model files from NVIDIA Download Server and save it in your local models directory.

Download example images

The recommended CT images used for training the algorithm, can be found here.

Create a macro module and add inputs and outputs

Add a PythonImage module and save the network as MONAISpleenSegmentation.mlab.

Now, right-click on the PythonImage module, select [ “Grouping” → Add to new Group ], and name the group MONAIDemo.

Right-click on the group’s name and choose Convert to Local Macro using the same name.

Our new module does not provide an input or output.

Right-click on the Macro Module and select [ Related Files → MONAIDemo.script ].

Add the following code into the *.script-file and save.

Interface {
  Inputs {
    Field inputImage { type = Image }
  }
  Outputs {
    Field outImage { internalName = PythonImage.output0 }
  }
  Parameters {
    Field start { type = Trigger }
  }
}

If you now reload your module in MeVisLab, you can see the new input and output.

Add a Commands section to your *.script-file.

...
Commands {
  source = $(LOCAL)/MONAIDemo.py
}
...

Right-click on the MONAIDemo.py and select [ Open File $(LOCAL)/MONAIDemo.py ]. An empty Python file is created and opens automatically. Save the empty Python file.

Create the network for the segmentation

Right-click on the Macro Module and select [ Related Files → MONAIDemo.mlab ]. Create the network seen below.

Fields of the internal network can be left with default values, we will change them later.

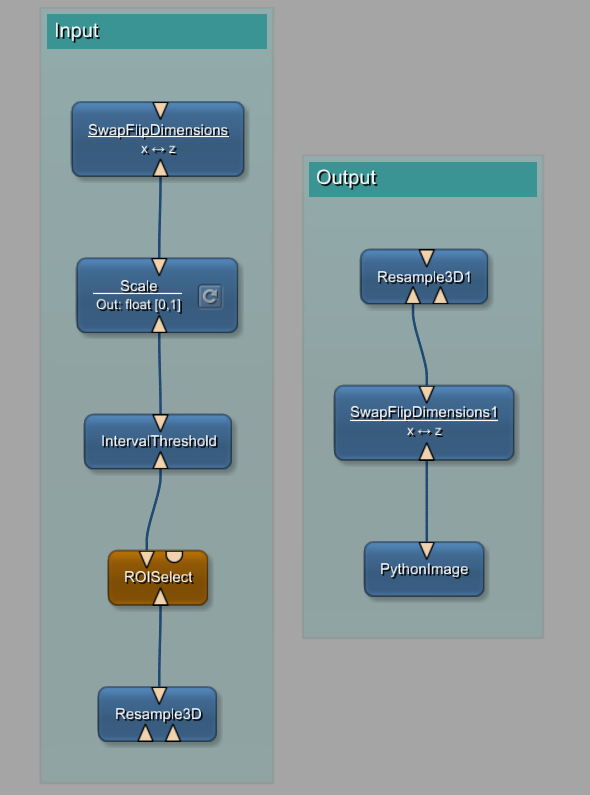

The left part defines actions executed on the input image, the right part defines what shall happen on the output after the MONAI segmentation has been done. A detailed description will be provided later.

Open your *.script file via right-click on the Macro Module and select [ Related Files → MONAIDemo.script ].

Define your input image field to re-use the internal name of the left input of the Resample3D module.

Interface {
  Inputs {
    Field inputImage { internalName = Resample3D.input0 }
  }
  ...
}

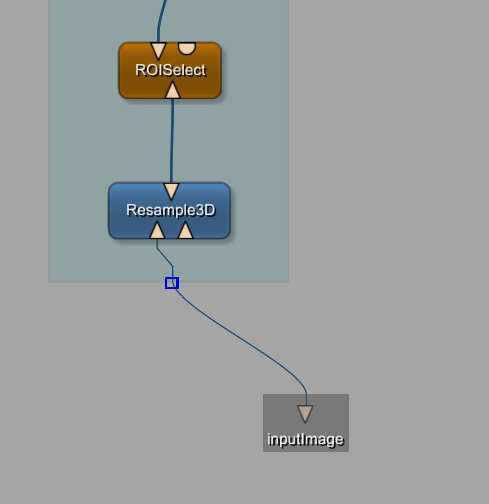

If you now open the internal network of your macro module, you can see that the input image is connected to the input of the Resample3D module.

Again open the *.script file and change the internal name of your outImage field to re-use the field Resample3D1.output0.

Interface {
  ...
  Outputs {
    Field outImage { internalName = Resample3D1.output0 }
  }
  ...
}

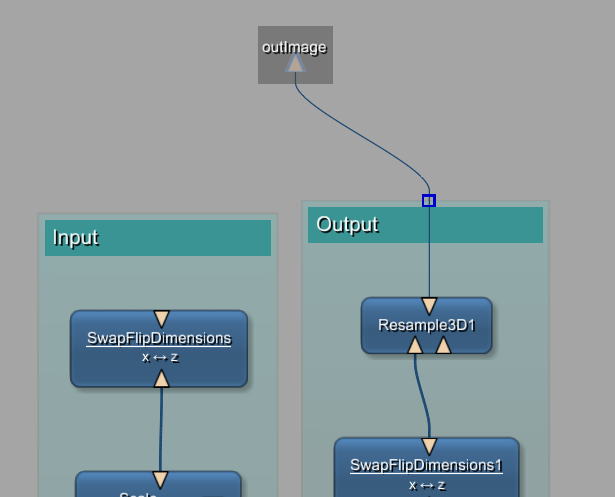

If you now open the internal network of your macro module, you can see that the output image is connected to the output of the Resample3D1 module.

Adapt input image to MONAI parameters from training

The model has been trained for strictly defined assumptions for the input image. All values can normally be found in the inference.json file in your configs directory.

Use the itkImageFileReader module to load the file Task09_Spleen/Task09_Spleen/imagesTr/spleen_7.nii.gz from dowloaded example patients. The Output Inspector shows the image and additional information about the size.

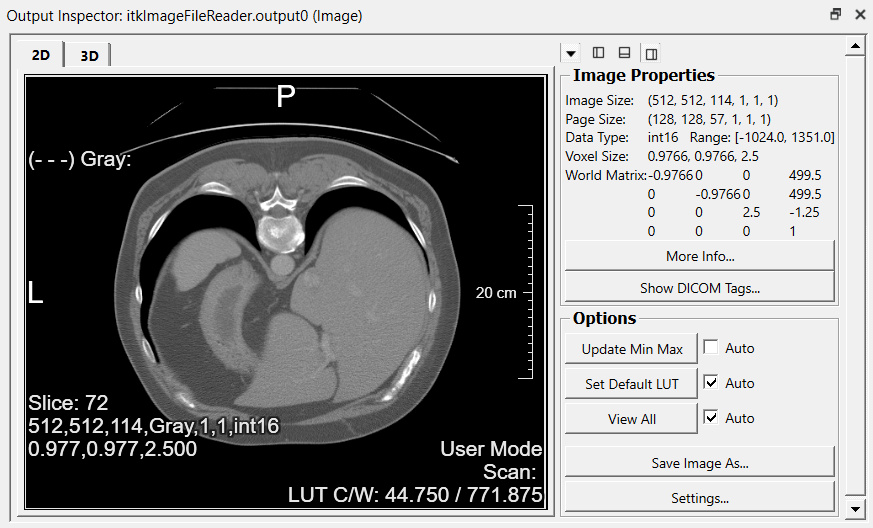

We can see that the image size is 512 x 512 x 114 and the voxel size is 0.9766 x 0.9766 x 2.5.

Connect the module to your local macro module MonaiDemo. The result of the segmentation shall be visualized as a semi-transparent overlay on your original image.

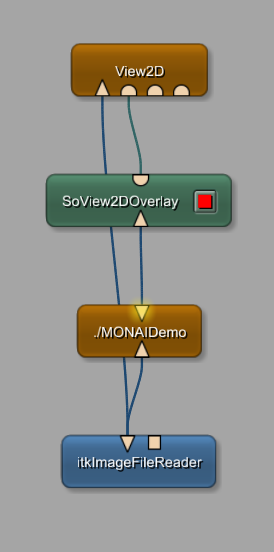

Add a SoView2DOverlay and a View2D module and connect them to your local macro module MonaiDemo.

The Spleen CT Segmentation network expects images having a defined voxel size of 1.5 x 1.5 x 2. We want to define these values via fields in the Module inspector.

Open the *.script file and add the fields start and voxelSize to your local macro module MonaiDemo:

Interface {
  ...
  Parameters {
    Field start { type = Trigger }
    Field voxelSize { internalName = Resample3D.voxelSize }
  }
  ...
}

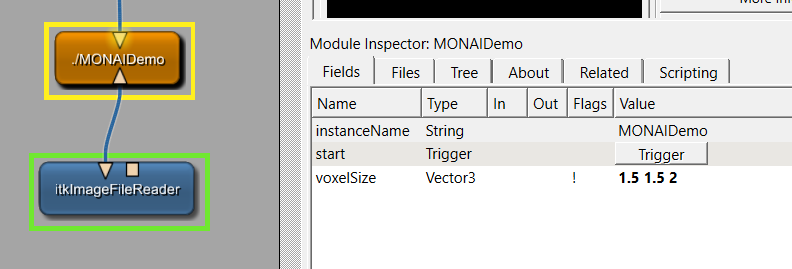

If you reload your module now, we can set the voxel size to use for the segmentation directly in our macro module MonaiDemo. Additionally we can trigger a start function for running the segmentation. This is implemented later.

If you select the output field of the Resample3D module in the internal network, you can see the dimensions of the currently opened image after changing the voxel size to 1.5 x 1.5 x 2. It shows 333 x 333 x 143.

The algorithm expects image sizes of 160 x 160 x 160. We add this expected size of the image to our macro module in the same way.

Open the *.script file and add the following fields to your local macro module MonaiDemo:

Interface {
  ...
  Parameters {
    ...
    Field sizeX { type = Int }
    Field sizeY { type = Int }
    Field sizeZ { type = Int }
    ...
  }
  ...
}

Reload your macro module and enter the following values for your new fields:

• sizeX = 160
• sizeY = 160
• sizeZ = 160

Next, we change the grey values of the image, because the algorithm has been trained on values between -57 and 164. Again, the values can be found in the inference.json file in your configs directory.

Open the *.script file and add the following fields to your local macro module MonaiDemo:

Interface {
  ...
  Parameters {
    ...
    Field thresholdMin { internalName = IntervalThreshold.threshMin }
    Field thresholdMax { internalName = IntervalThreshold.threshMax }
    ...
  }
  ...
}

As already done before, we can now defined the threshold values for our module via Module Inspector. Set the following:

• thresholdMin = -57
• thresholdMax = 164

As defined in the inference.json file in your configs directory, the grey values in the image must be between 0 and 1.

Open the *.script file and add the following fields to your local macro module MonaiDemo:

Interface {
  ...
  Parameters {
    ...
    Field scaleMin { internalName = Scale.outputMin }
    Field scaleMax { internalName = Scale.outputMax }
    ...
  }
  ...
}

Set the following:

• scaleMin = 0
• scaleMax = 1

The algorithm expects NumPy images. NumPy uses the order Z, Y, X, other than MeVisLab. We are using X, Y, Z. The image needs to be transformed.

Open the panel of the SwapFlipDimensions module and select X as Axis 1 and Z as Axis 2.

After the algorithm has been executed, we have to flip the images back to the original order. Open the panel of the SwapFlipDimensions1 module and select X as Axis 1 and Z as Axis 2.

Finally we want to show the results of the algorithm as a semi-transparent overlay on the image. Open tha panel of the View2DOverlay and define the following settings:

• Blend Mode: Blend
• Alpha Factor: 0.5
• Base Color: red

Field Listeners

We add some Field Listeners to our Commands section of the *.script file. They are necessary to react on changes the user makes on the fields of our module.

...
Commands {
  source = $(LOCAL)/MONAIDemo.py

  FieldListener start {
    command = onStart
  }

  FieldListener sizeX {
    command = _sizeChanged
  }

  FieldListener sizeY {
    command = _sizeChanged
  }

  FieldListener sizeZ {
    command = _sizeChanged
  }

  FieldListener inputImage {
    command = _setDefaultValues
  }
}
...

If the user touches the trigger start, a Python function onStart will be executed. Whenever the size of our image is changed, we call a function called _sizeChanged and if the input image changes, we want to reset the module to its default values.

Python scripting

The next step is to write our Python code.

Right-click MONAIDemo.py in Commands section line source. MATE opens showing the *.py file of our module.

Insert the following code:

import torch
import numpy as np
import mevislab
from monai.bundle import load_bundle_config

# Paths
MODEL_DIR = r"C:\tmp\spleen_ct_segmentation"
MODEL_PATH = MODEL_DIR + r"\models\model_spleen_ct_segmentation_v1.pt"
TRAIN_JSON = MODEL_DIR + r"\configs\train.json"

# using cpu or cude
DEVICE = torch.device("cuda" if torch.cuda.is_available() else "cpu")

def onStart():
    print("\n--- Start ---")

def _setDefaultValues():
    print("\n--- Reset ---")

def _getImage():
    print("\n--- Get Image ---")

def _sizeChanged():
    print("\n--- Size Changed ---")

These functions should be enough to run the module. You can try them by changing the input image of our module, by changing any of the size values in Module Inspector or by clicking start.

Lets implement the _getImage function first:

...
  def _getImage():
    if ctx.field("SwapFlipDimensions.output0").isValid():
        # Get image after all modifications have been done
        image = ctx.field("SwapFlipDimensions.output0").image()

        return image
    else:
        return None
...

We want to use the image that has been modified according to our pre-trained network requirements discussed above. We use the output image of the SwapFlipDimensions module when clicking start.

...
  def onStart():
    print("\n--- Start ---")
    try:
        inputImage = _getImage()

        if inputImage:
            imageArray = inputImage.getTile(
                (0, 0, 0, 0, 0, 0), inputImage.imageExtent()
            )
            # We only need x, y and z-dimensions
            image = imageArray[0, 0, 0, :, :, :]

            print(f"Using image {image.shape}")

            # prepare tensor
            inputTensor = torch.tensor(image[None, None, :, :, :]).to(DEVICE)
            print(f" Tensorform: {tuple(inputTensor.shape)}")
            # Load Bundle-Configuration
            parser = load_bundle_config(MODEL_DIR, "train.json")

            # Create network from train.json
            model = parser.get_parsed_content("network_def")
            model.load_state_dict(torch.load(MODEL_PATH, map_location=DEVICE))
            model.to(DEVICE)
            model.eval()
            print("Model loaded and initialized.")

            # Inference
            with torch.no_grad():
                output = model(inputTensor)
                prediction = output.argmax(dim=1, keepdim=True).cpu().numpy()[0, 0]

            print("Inference done.")

            # Result back into MeVisLab
            interface = ctx.module("PythonImage").call("getInterface")
            interface.setImage(
                prediction, voxelToWorldMatrix=inputImage.voxelToWorldMatrix()
            )

            print("--- Segmentation done ---\n")

    except Exception as e:
        print("Error:", e)
        import traceback

        traceback.print_exc()
...

This function now already calculates the segmentation using the MONAI model. The problem is, that it may happen that our subimage with the size 160 x 160 x 160 is located somewhere in our original image, where no spleen is visible.

We have to calculate a bounding box in our ROISelect module and need to be able to move this bounding box to the correct location.

...
  def _sizeChanged(field: "mevislab.MLABField"):
    if ctx.field("Resample3D.output0").isValid():
        voxelSizeImage = ctx.field("Resample3D.output0").image()
        # Get the size of this image
        voxelSizeImageExtent = voxelSizeImage.imageExtent()

        # Calculate region of interest by defining start point and size
        roiStartX = voxelSizeImageExtent[0] - ctx.field("sizeX").value
        roiStartY = voxelSizeImageExtent[1] - ctx.field("sizeY").value
        roiStartZ = voxelSizeImageExtent[2] - ctx.field("sizeZ").value

        ctx.field("ROISelect.startVoxelX").value = roiStartX
        ctx.field("ROISelect.startVoxelY").value = roiStartY
        ctx.field("ROISelect.startVoxelZ").value = roiStartZ

        # Subtract 1 because the pixel values start with 0
        ctx.field("ROISelect.endVoxelX").value = voxelSizeImageExtent[0] - 1
        ctx.field("ROISelect.endVoxelY").value = voxelSizeImageExtent[1] - 1
        ctx.field("ROISelect.endVoxelZ").value = voxelSizeImageExtent[2] - 1
...

Whenever our size fields are modified, the bounding box is re-calculated using the size of the given image and the values of the sizes defined by the user. The calculated bounding box is not positioned. This needs to be done manually, if necessary.

Open the *.script file and add a Window section. In this window, we re-use the panel of the ROISelect module to manually correct the location of our calculated bounding box.

...
Window {
  height = 100
  width = 100
  Category {
    Viewer ROISelect.scene.self {
      type = SoRenderArea
      expandX = True
      expandY = True
    }
  }
}
...

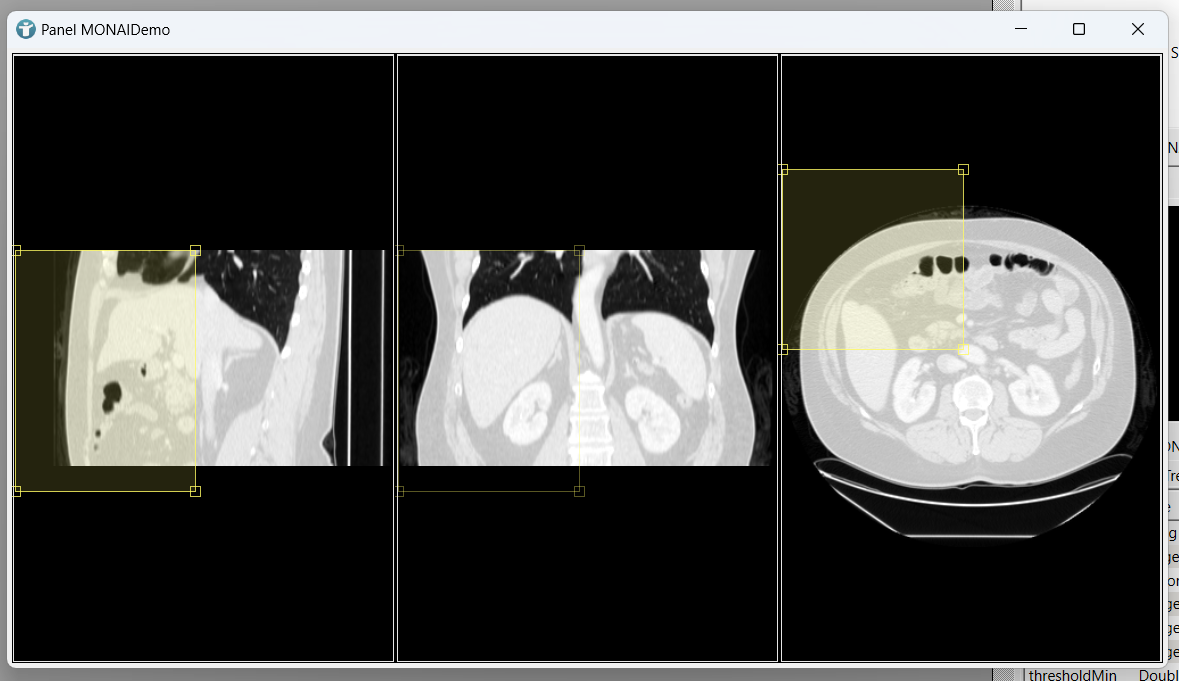

If you now open the panel of our MONAIDemo module, we can manually move the box in all three dimensions.

Back to Python, we now need to reset our module to default, in case the input image changes. This also removes previous segmentations from the PythonImage module.

...
  def _setDefaultValues():
    ctx.field("voxelSize").value = [1.5, 1.5, 2]
    ctx.field("sizeX").value = 160
    ctx.field("sizeY").value = 160
    ctx.field("sizeZ").value = 160
    ctx.field("thresholdMin").value = -57
    ctx.field("thresholdMax").value = 164
    ctx.field("scaleMin").value = 0
    ctx.field("scaleMax").value = 1

    interface = ctx.module("PythonImage").call("getInterface")
    interface.unsetImage()
...

Execute the segmentation

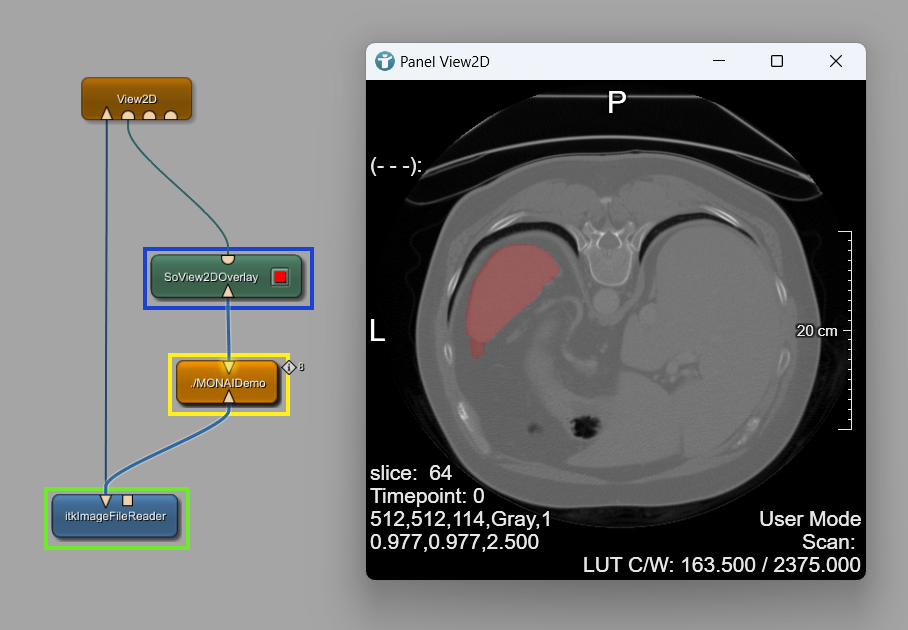

If you now load an image using the itkImageFileReader module, you can manually adapt your bounding box to include the spleen and start segmentation.

The results are shown as a semi-transparent overlay.

You can also use the other examples from MONAI Model Zoo the same way, just make sure to apply the necessary changes on the input images like size, voxel size and other parameters defined in the inference.json file of the model.

Summary

• Pre-trained MONAI networks can be used directly in MeVisLab via PythonImage module
• The general principles are always the same for all models

   Download Archive here.
