Example 3: Iterative Tests in MeVisLab

     This example is also available on YouTube.

Introduction

In this example, you are writing an iterative test. Iterative test functions run a function for every specified input. They return a tuple consisting of the inputs iterated over and the function object called. The iterative test functions are useful if the same function should be applied to different input data. These could be input values, names of input images, etc.

Steps to Do

Creating the Network to be Used for Testing

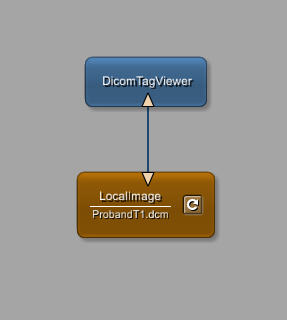

Add a LocalImage and a DicomTagViewer module to your workspace and connect them.

Test Case Creation

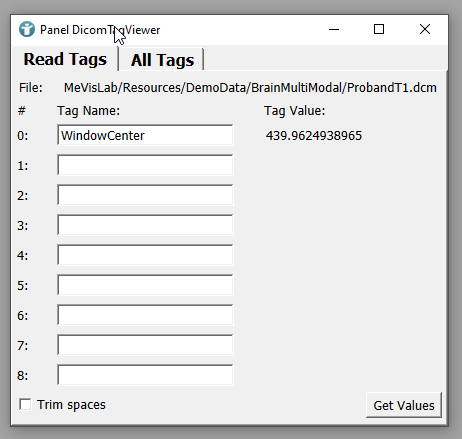

Open the panel of the DicomTagViewer and set Tag Name to WindowCenter. The value of the DICOM tag from the current input image is automatically set as value.

Save the network.

Start the TestCaseManager and create a new test case called IterativeTestCase as seen in Example 1: Writing a Simple Ttest Case in MeVisLab.

Defining the Test Data

In the TestCaseManager, open the test case Python file via Edit File.

Add a list for test data to be used as input and a prefix for the path of the test data as seen below.

from mevis import *
from TestSupport import Base, Fields, ScreenShot, Logging
from TestSupport.Macros import *

patientPathPrefix = "$(DemoDataPath)/BrainMultiModal/"

testData = { "ProbandT1":("ProbandT1.dcm", "439.9624938965"),
     "ProbandT2":("ProbandT2.dcm", "234.91")}

The above list contains an identifier for the test case (ProbandT1/2), the file names, and a number value. The number value is the value of the DICOM tag (0028,1050) WindowCenter for each file.

Create Your Iterative Test Function

Add the Python function to your .script file:

def ITERATIVETEST_TestWindowCenter():
  return testData, testPatient

This function defines that testPatient shall be called for each entry available in the defined list testData. Define the function testPatient:

def testPatient(path, windowCenter):
  ctx.field("LocalImage.name").value = patientPathPrefix + path
  tree = ctx.field("LocalImage.outImage").getDicomTree()
  importValue = str(tree.getTag("WindowCenter").value())
  dicomValue = str(ctx.field("DicomTagViewer.tagValue0").value)
  ASSERT_EQ(windowCenter, importValue, "Checking expected WindowCenter value against DICOM tree value.")
  ASSERT_EQ(windowCenter, dicomValue, "Checking expected WindowCenter value against DicomTagViewer value.")

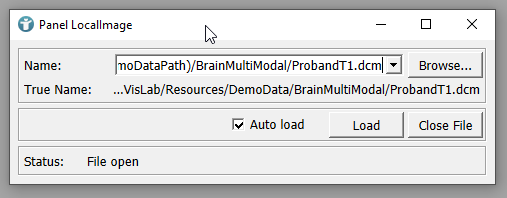

1. Initially, the path and filename for the module LocalImage are set. The data is loaded automatically, because the module has the AutoLoad flag enabled by default.



2. Then, the DICOM tree of the loaded file is used to get the WindowCenter value (importValue).
3. The previously defined value of the DicomTagViewer is set as dicomValue.
4. The final test functions ASSERT_EQ evaluate if the given values are equal.

Run Your Iterative Test

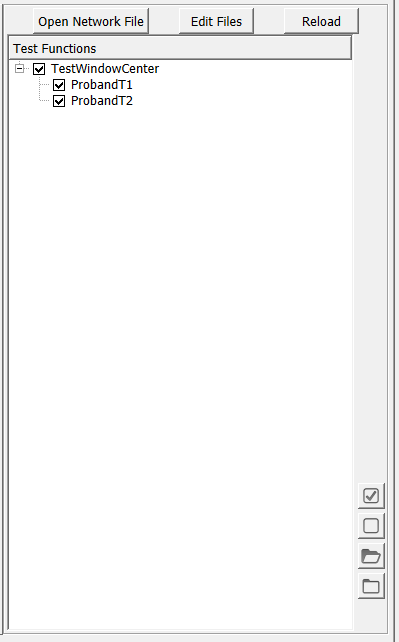

Open the TestCaseManager and select your package and test case. You will see two test functions on the right side.

The identifiers of your test functions are shown as defined in the list (ProbandT1/2). The TestWindowCenter now runs for each entry in the list and calls the function testPatient for each entry using the given values.

Adding Screenshots to Your TestReport

Now, extend your network by adding a View2D module and connect it with the LocalImage module. Add the following lines to the end of your function testPatient:

def testPatient(path, windowCenter):
  ...
  Fields.setValue("View2D.startSlice", 0)
  result = ScreenShot.createOffscreenScreenShot("View2D.self", "screentest.png")
  Logging.showImage("My screenshot", result)
  Logging.showFile("Link to screenshot file", result)

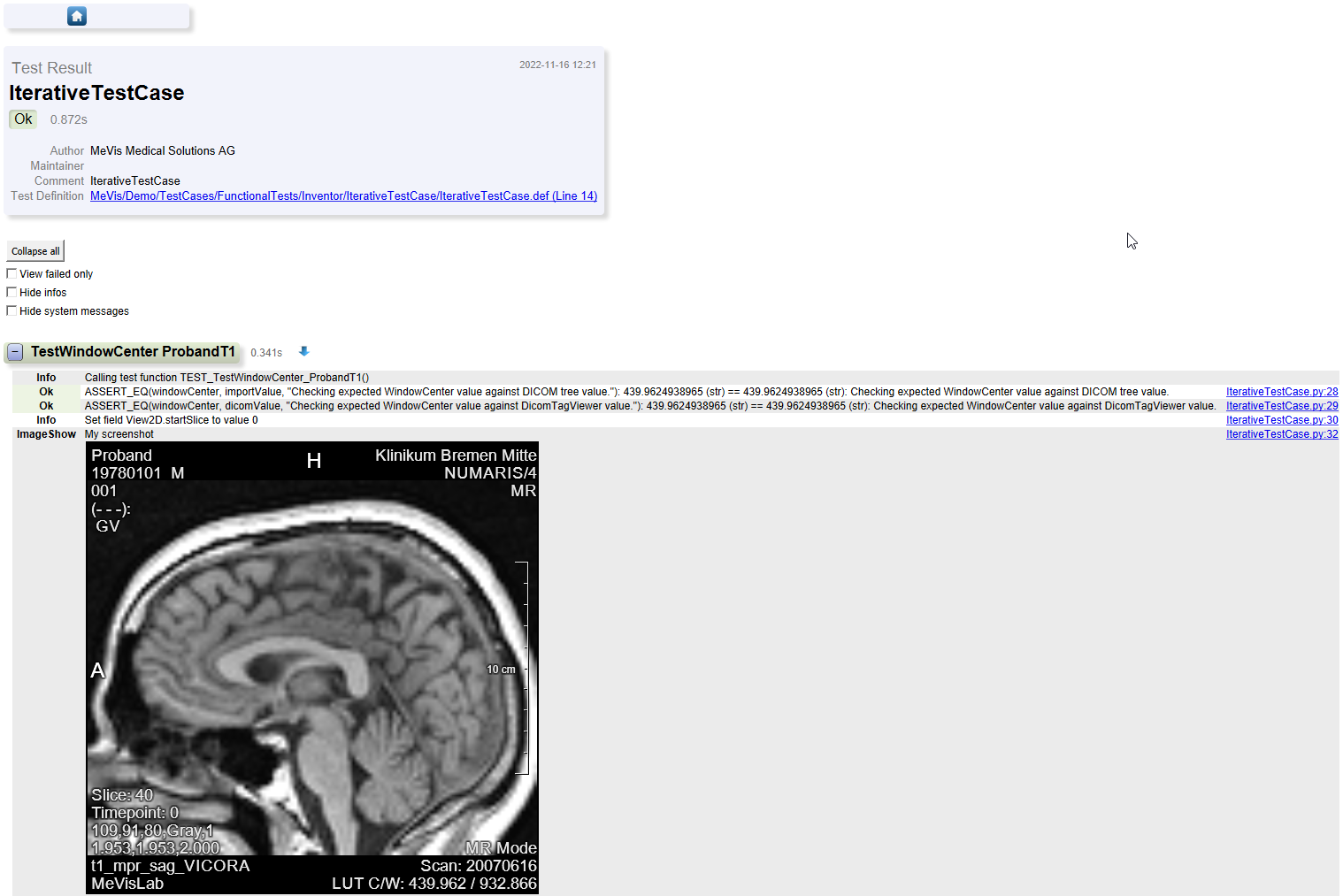

Your ReportViewer now shows a screenshot of the image in the View2D.

Summary

• Iterative tests allow you to run the same test function on multiple input entries.
• It is possible to add screenshots to test cases.
