Contour Example 7: Using the CSOListContainer

     This example is also available on YouTube.

Introduction

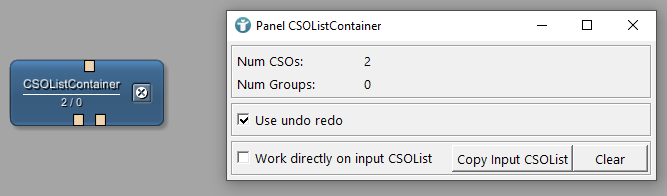

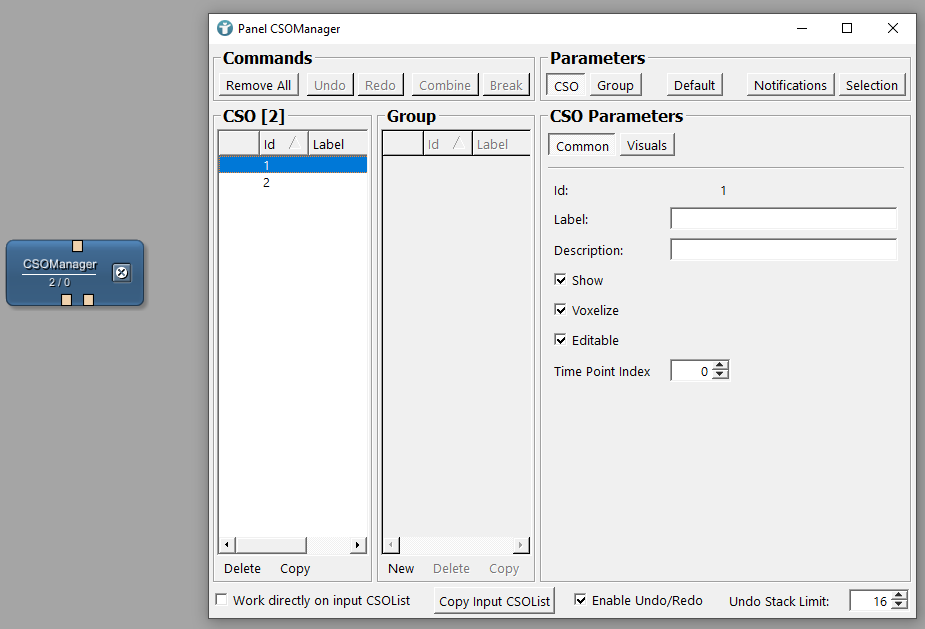

In this example, we are using the module CSOListContainer instead of the CSOManager. The CSOManager is a heavyweight, UI driven module. You can use it to see all of your CSOs and CSOGroups in the module panel. The CSOListContainer is a lightweight module with focus on Python scripting. We recommend to use this module for final application development, because Python provides much more flexibility in handling CSO objects.

We will create multiple CSOs by using the SoCSOEllipseEditor and dynamically add these CSOs to different groups via Python scripting depending on their area. CSOs larger than a configurable threshold will be drawn in red, smaller CSOs will be drawn in green. The colors will also be adapted if we manually resize the contours.

Steps to Do

Develop Your Network

Add a LocalImage and a View2D module to your workspace and connect them as shown below. Load the file ProbandT1.dcm from MeVisLab demo data. In order to create contours (CSOs), we need a SoView2DCSOExtensibleEditor module. It manages attached CSO editors, renderers, and offers an optional default renderer for all types of CSOs.

Add a SoCSOEllipseEditor and a CSOListContainer to the SoView2DCSOExtensibleEditor

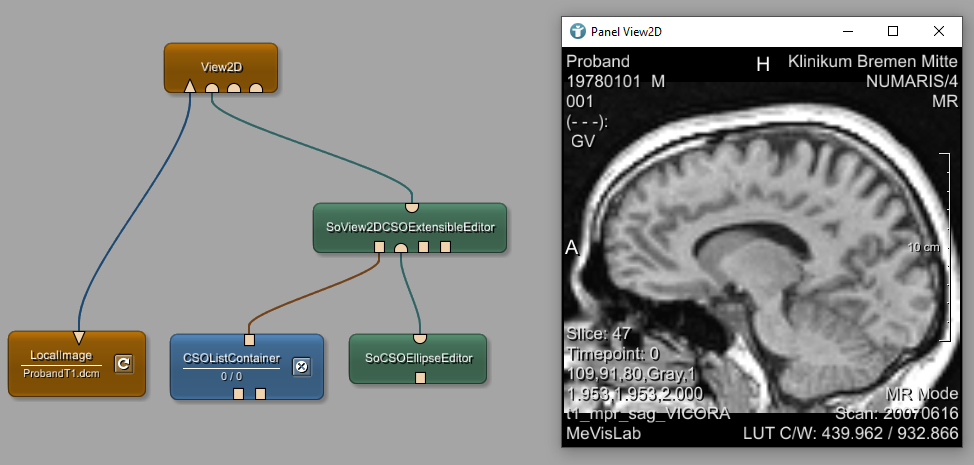

You are now able to draw CSOs.

Create a separate directory for this tutorial and save your network in this empty directory. This makes the final structure easier to read.

Create a Local Macro Module

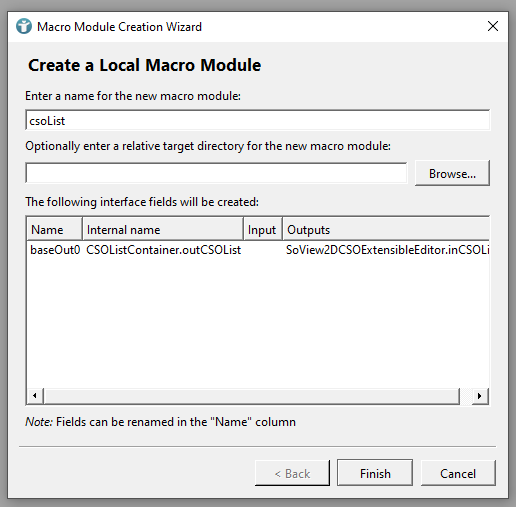

Select the module CSOListContainer and open menu [ File → Create Local Macro ]. Enter some details about your new local macro module and click Finish. Leave the already defined output as is.

The appearance of the CSOListContainer module changes, because it is a macro module named csoList now.

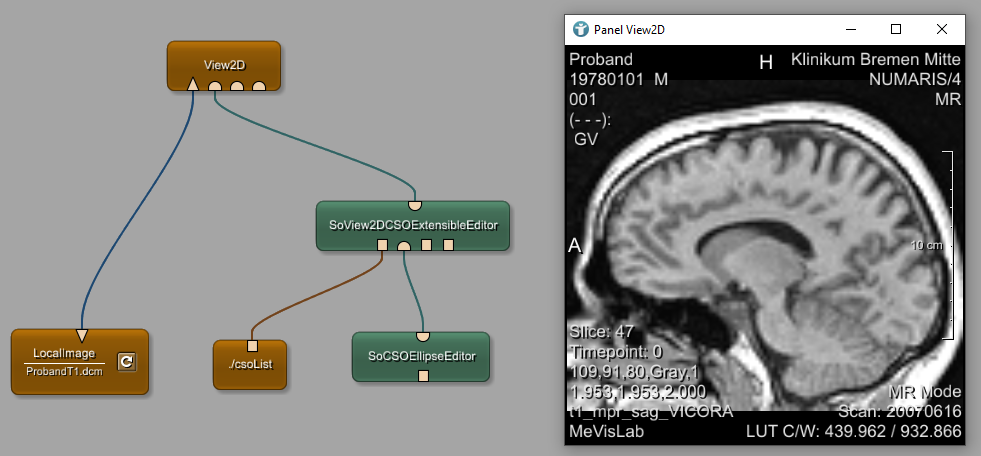

The behavior of your network does not change. You can still draw the same CSOs and they are still managed by the CSOListContainer module. The reason why we created a local macro with a single module inside is that we want to add Python scripting to the module. Python scripts can only be added to macro modules.

Open the context menu of your csoList module and select [ Related Files → csoList.script ].

The MeVisLab text editor MATE opens, showing your .script file. You can see the output of your module as CSOListContainer.outCSOList. We want to define a threshold for the color of our CSOs. For this, add another field to the Parameters section of your script file named areaThreshold. Define the type as Float and value as 2000.0.

In order to call Python functions, we also need a Python file. Add a Commands section and define the source of the Python file as $(LOCAL)/csoList.py. Also add an initCommand as initCSOList. The initCommand defines the Python function that is called whenever the module is added to the workspace or reloaded.

Interface  {
    Inputs {}
    Outputs  {
        Field baseOut0 {
            internalName = CSOListContainer.outCSOList
        }
    }
    Parameters {
        Field areaThreshold { type = Float value = 2000.0 }
    }
}

Commands {
    source = $(LOCAL)/csoList.py
    initCommand = initCSOList
}

Right-click on the initCSOList command and select [ Create Python Function 'initCSOList' ]. The Python file and the function are generated automatically.

Back in MeVisLab, the new field areaThreshold can be seen in Module Inspector when selecting your module. The next step is to write the Python function initCSOList.

Write Python Script

Whenever the local macro module is added to the workspace or reloaded, new CSOLists shall be created and we need a possibility to update the lists whenever a new CSO has been created or existing contours changed.

Define a function setupCSOList.

def setupCSOList():
    csoList = _getCSOList()
    csoList.removeAll()
    csoGroupSmall = csoList.addGroup("small")
    csoGroupLarge = csoList.addGroup("large")

    csoGroupSmall.setUsePathPointColor(True)
    csoGroupSmall.setPathPointColor((0, 1, 0))

    csoGroupLarge.setUsePathPointColor(True)
    csoGroupLarge.setPathPointColor((1, 0, 0))

def _getCSOList():
    return ctx.field("CSOListContainer.outCSOList").object()

The function gets the current CSOList from the output field of the CSOListContainer. Initially, it should be empty. If not, we want to start with an empty list; therefore, we remove all existing CSOs.

We also create two new CSOGroups: one list for small contours, one list for larger contours, depending on the defined areaThreshold of the module.

Additionally, we also want to define different colors for the CSOs in the lists. Small contours shall be drawn in green, large contours shall be drawn in red.

In order to listen for changes on the contours, we need to register for notifications. Create a new function registerForNotification.

def registerForNotification():
    csoList = _getCSOList()
    csoList.registerForNotification(csoList.NOTIFICATION_CSO_FINISHED, ctx, "csoFinished")

def csoFinished(_arg):
    csoList = _getCSOList()
    for cso in csoList.getCSOs():
        cso.removeFromAllGroups()
        csoArea = cso.getArea()
        csoGroup = csoList.getGroupByLabel("large")
        if csoArea <= _getAreaThreshold():
            csoGroup = csoList.getGroupByLabel("small")
        csoGroup.addCSO(cso.getId())

def _getAreaThreshold():
    return ctx.field("areaThreshold").value

The function gets all currently existing CSOs from the CSOListContainer. Then, we register for notifications on this list. Whenever the notification NOTIFICATION_CSO_FINISHED is sent in the current context, we call the function csoFinished.

The csoFinished function again needs all existing contours. We walk through each CSO in the list and remove it from all groups. As we do not know which CSO has been changed from the notification, we evaluate the area of each CSO and add them to the correct list again.

The function _getAreaThreshold returns the current value of our parameter field areaThreshold.

Now, we can call our functions in the initCSOList function and test our module.

def initCSOList():
    setupCSOList()
    registerForNotification()

def setupCSOList():
    csoList = _getCSOList()
    csoList.removeAll()
    csoGroupSmall = csoList.addGroup("small")
    csoGroupLarge = csoList.addGroup("large")

    csoGroupSmall.setUsePathPointColor(True)
    csoGroupSmall.setPathPointColor((0, 1, 0))

    csoGroupLarge.setUsePathPointColor(True)
    csoGroupLarge.setPathPointColor((1, 0, 0))

def registerForNotification():
    csoList = _getCSOList()
    csoList.registerForNotification(csoList.NOTIFICATION_CSO_FINISHED, ctx, "csoFinished")

def csoFinished(_arg):
    csoList = _getCSOList()
    for cso in csoList.getCSOs():
        cso.removeFromAllGroups()
        csoArea = cso.getArea()
        csoGroup = csoList.getGroupByLabel("large")
        if csoArea <= _getAreaThreshold():
            csoGroup = csoList.getGroupByLabel("small")
        csoGroup.addCSO(cso.getId())

def _getAreaThreshold():
    return ctx.field("areaThreshold").value

def _getCSOList():
    return ctx.field("CSOListContainer.outCSOList").object()

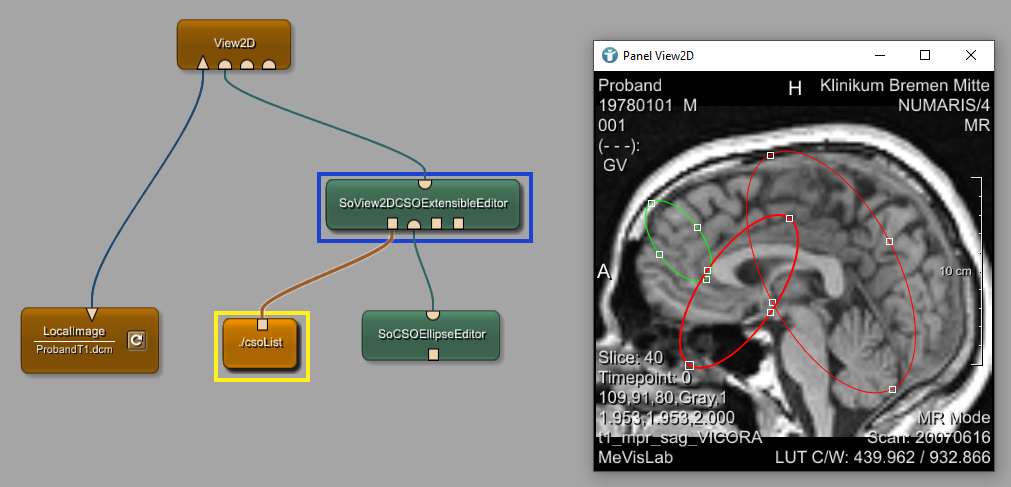

If you now draw contours, they are automatically colored depending on their area. You can also edit existing contours and the color is adapted.

Summary

• The module CSOListContainer provides a lightweight container to manage contours.
• It makes sense to encapsulate a single module into a macro module to provide additional functionalities via Python scripting.
• Notifications can be used to react on events.

   Download Archive here.
