Contour Example 2: Creating Contours using Live Wire and Interpolation

     This example is also available on YouTube.

Introduction

In this example, we like to create CSOs using the Live Wire Algorithm, which allows semiautomatic CSO creation. The algorithm uses edge detection to support the user creating CSOs.

We also like to interpolate CSOs over slices. That means additional CSOs are generated between manual segmentations based on a linear interpolation.

As a last step, we will group together CSOs of the same anatomical unit.

Steps to Do

Develop Your Network and Create CSOs

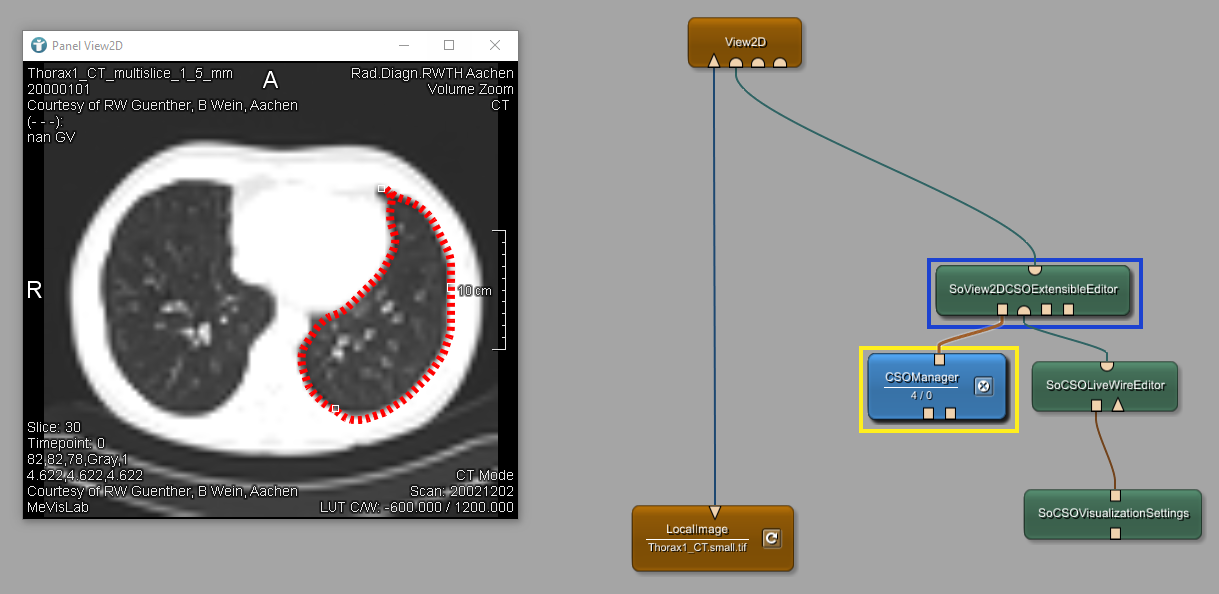

In order to do that, create the shown network. You can use the network from the previous example and exchange the SoCSO*Editor. In addition to that, load the example image $(DemoDataPath)/Thorax1_CT.small.tif . Now, create some CSOs on different, not consecutive slices. Afterward, hover over the CSOManager and press the emerging plus symbol. This displays the amount of existing CSOs.

Create CSO Interpolations

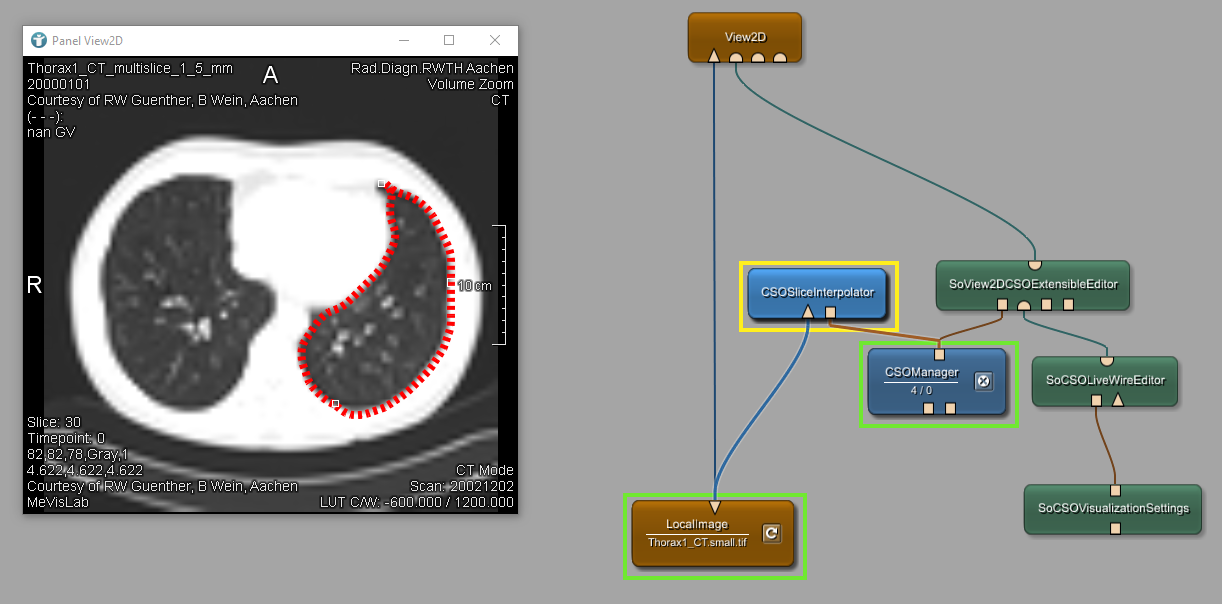

We like to generate interpolated contours for existing CSOs. In order to do that, add the module CSOSliceInterpolator to your workspace and connect it as shown.

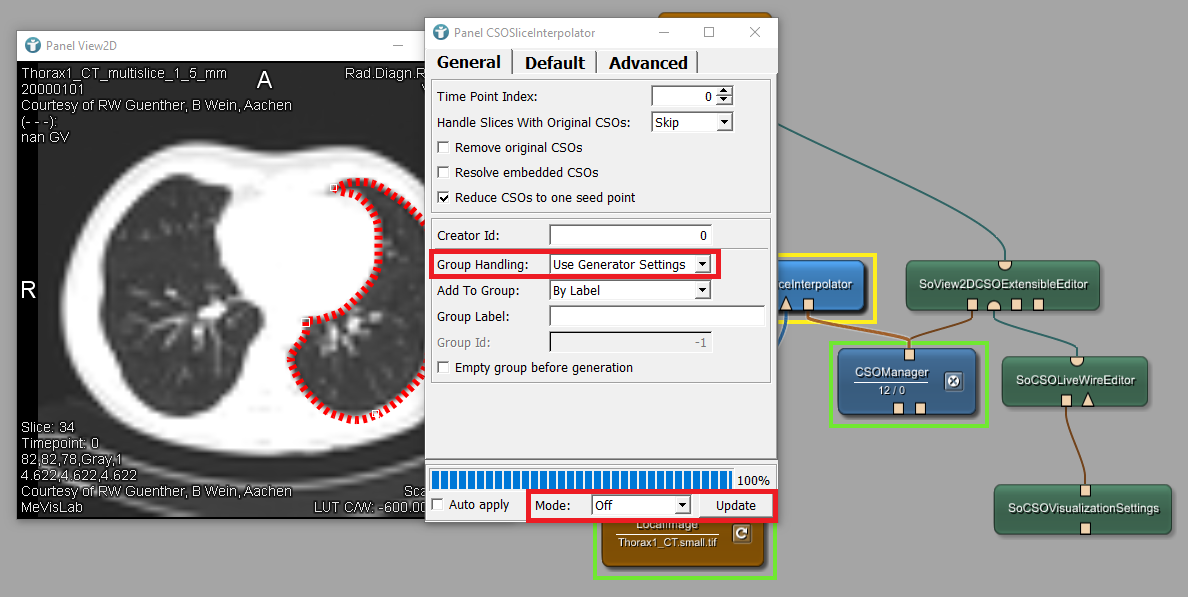

Open the panel of module CSOSliceInterpolator and change the Group Handling and the Mode as shown. If you now press Update, interpolated CSOs are created.

You can see the interpolated CSOs are added to the CSOManager. If you now scroll through your slices, you can find the interpolated CSOs.

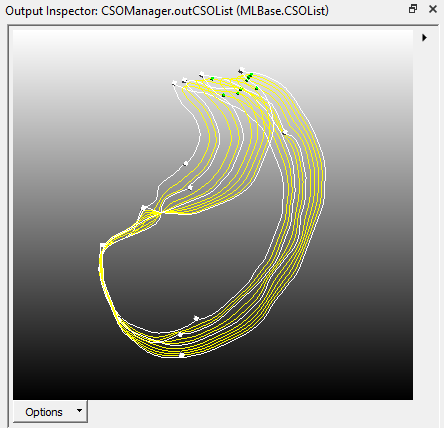

You can also take a look on all existing CSOs by inspecting the output of the CSOManager using the Output Inspector. Custom CSOs are displayed in white and interpolated CSOs are marked in yellow.

Group CSOs

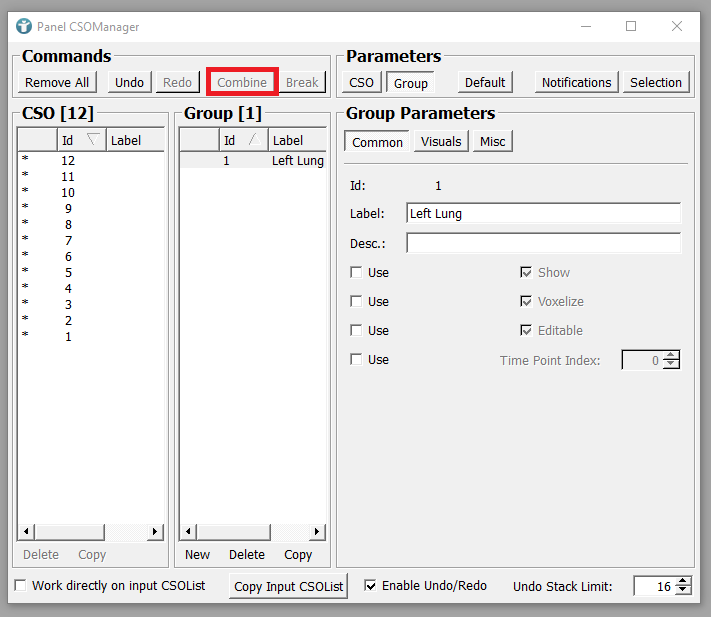

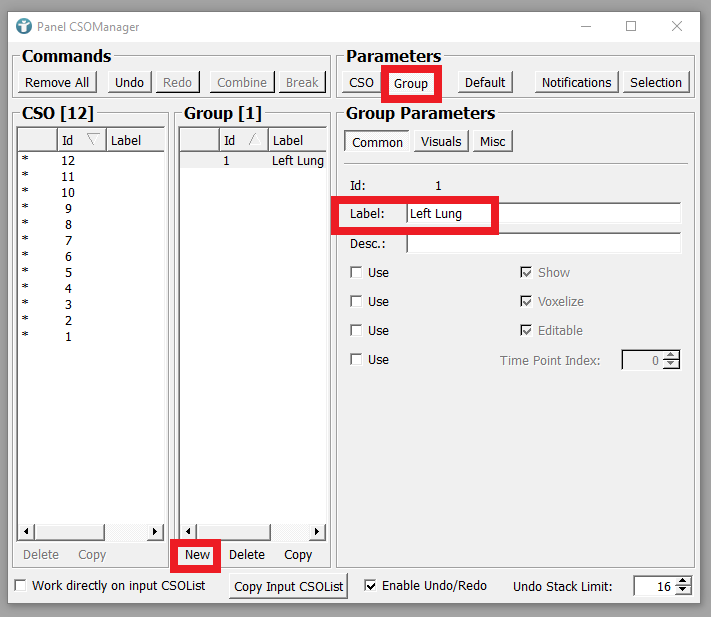

We like to segment both lobes of the lung. To distinguish the CSOs of both lungs, we like to group CSOs together, according to the lung they belong to. First, we like to group together all CSOs belonging to the lung we already segmented. In order to do this, open the CSOManager. Create a new CSOGroup and label that CSOGroup. We chose the label Left Lung. Now, mark the created CSOGroup and all CSOs you want to include into that group and press Combine. If you click on the CSOGroup, all CSOs belonging to this CSOGroup are marked with an asterisk.

As a next step, segment the right lung by creating new CSOs.

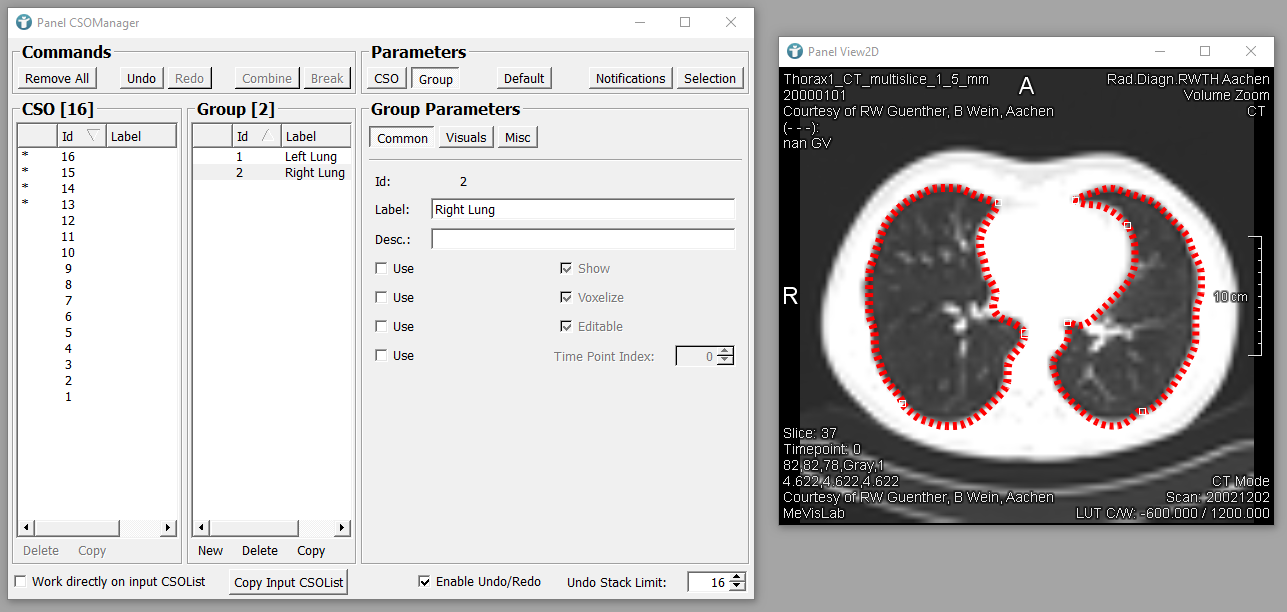

Create a new CSOGroup for all CSOs of the right lung. We labeled this CSOGroup Right Lung. Again, mark the group and the CSOs you like to combine and press Combine.

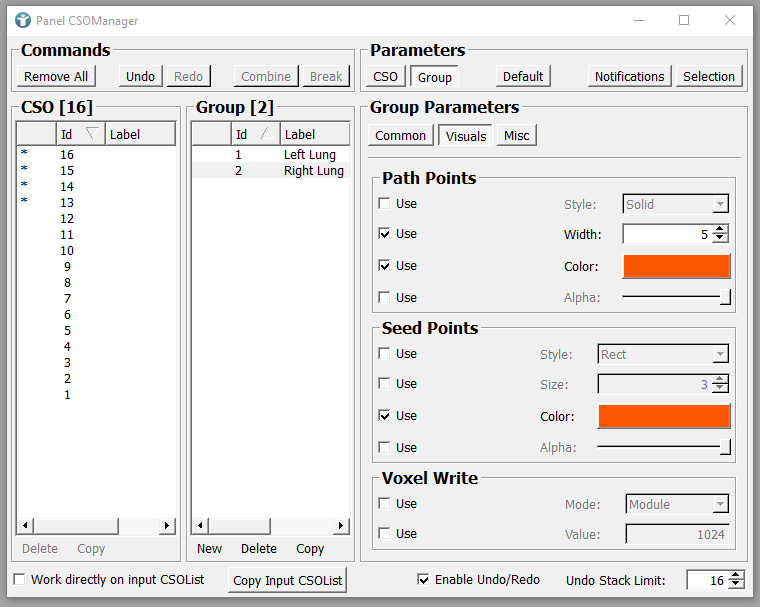

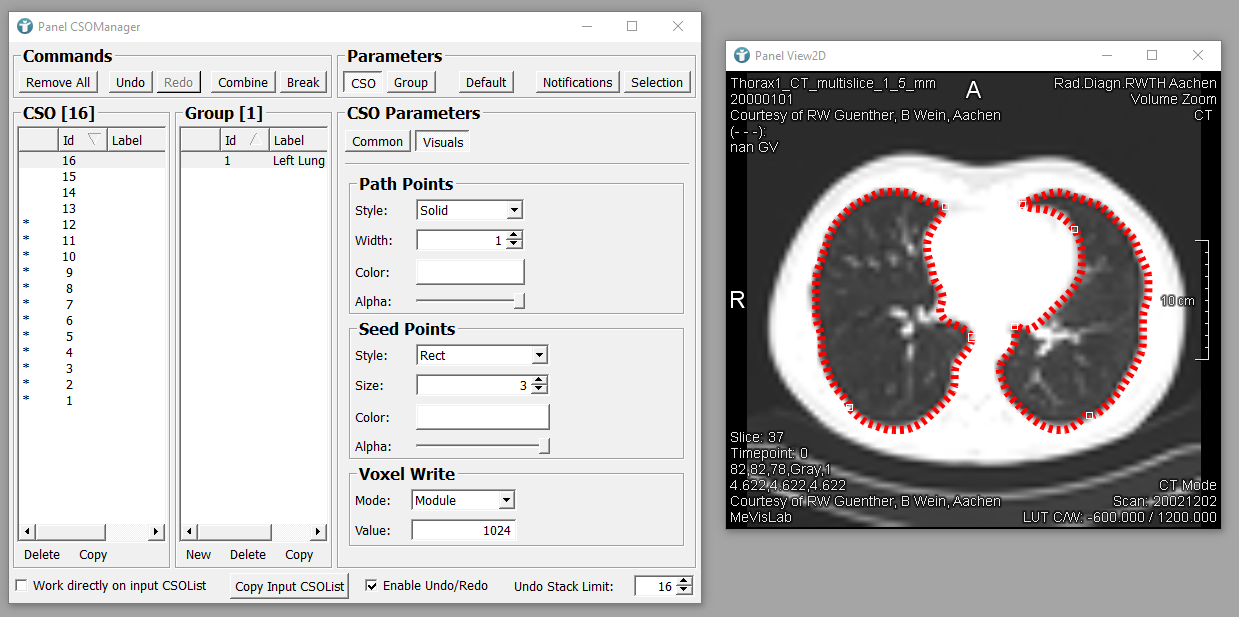

To visually distinguish the CSOs of both groups, change the color of each group under [ Group → Visuals ]. We changed the color of the Left Lung to be green and of the Right Lung to be orange for path and seed points. In addition, we increased the Width of the path points.

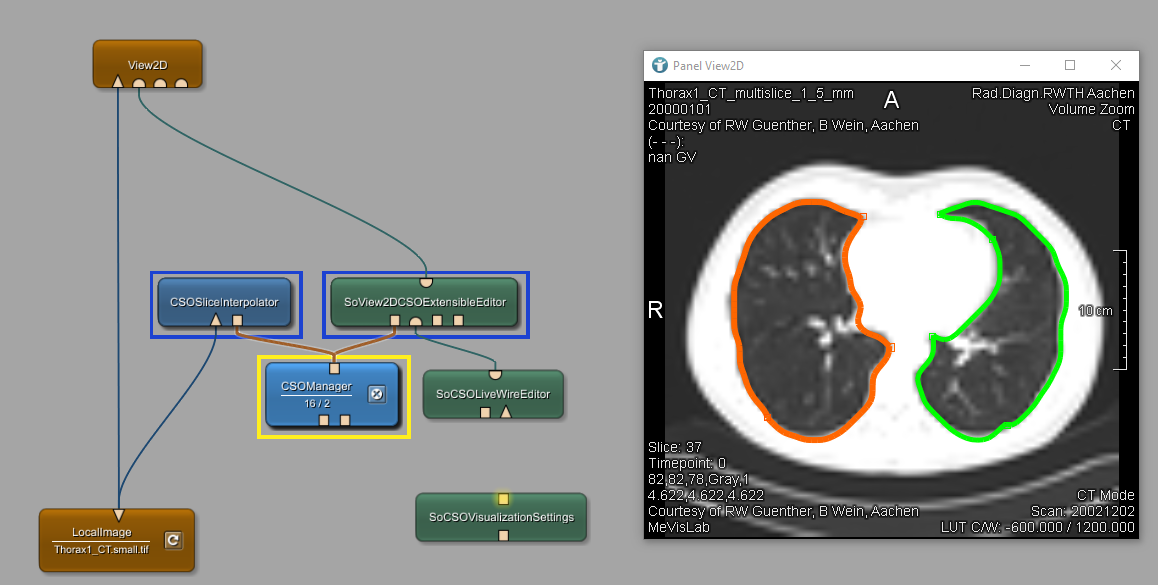

As a last step, we need to disconnect the module SoCSOVisualizationSettings, as this module overwrites the visualization settings we enabled for each group in the CSOManager.

Summary

• SoCSOLiveWireEditor can be used to create CSOs semiautomatically.
• CSO interpolations can be created using CSOSliceInterpolator.
• CSOs can be grouped together using the CSOManager.
