Contour Example 1: Creation of Contours

     This example is also available on YouTube.

Introduction

We like to start with the creation of CSOs. To create CSOs, you need a SoCSO*Editor. There are several different editors that can be used to create CSOs (see here). Some of them are introduced in this example.

Steps to Do

Develop Your Network

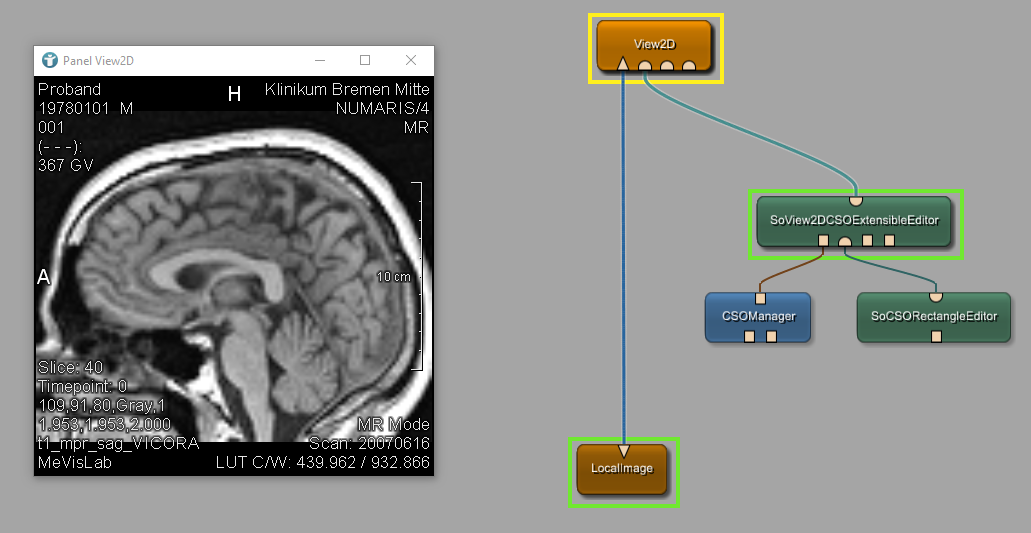

For this example, we need the following modules. Add the modules to your workspace, connect them as shown below, and load the example image $(DemoDataPath)/BrainMultiModal/ProbandT1.tif.

Edit Rectangular CSO

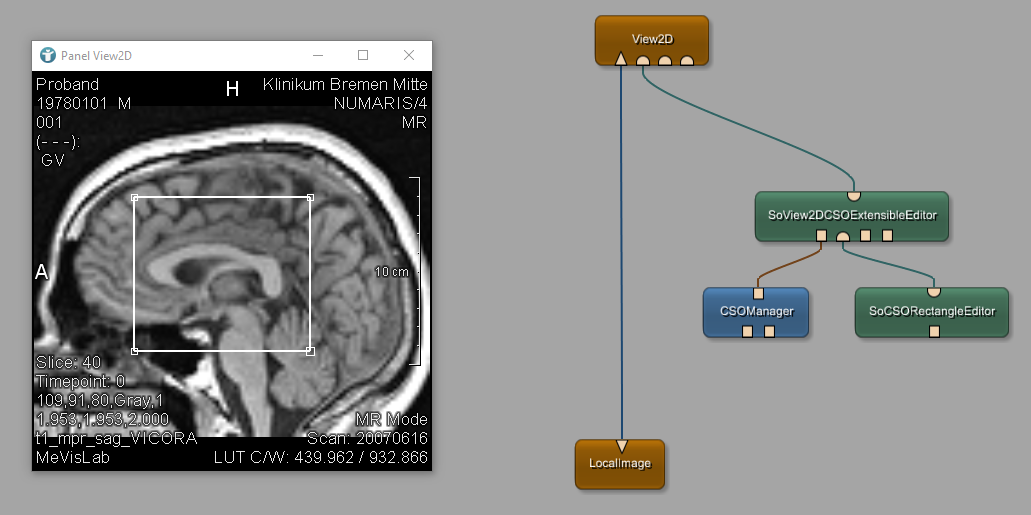

Now, open the module View2D. Use your left mouse button , to draw a rectangle as your first CSO.

The involved modules have the following tasks:

1. SoCSORectangleEditor: Enables the creation of the CSO and defines the shape of the CSOs

2. SoView2DCSOExtensibleEditor: Manages attached CSO editors and the appearance of CSOs

3. CSOManager: Creates a list of all drawn CSOs and offers the possibility to group CSOs

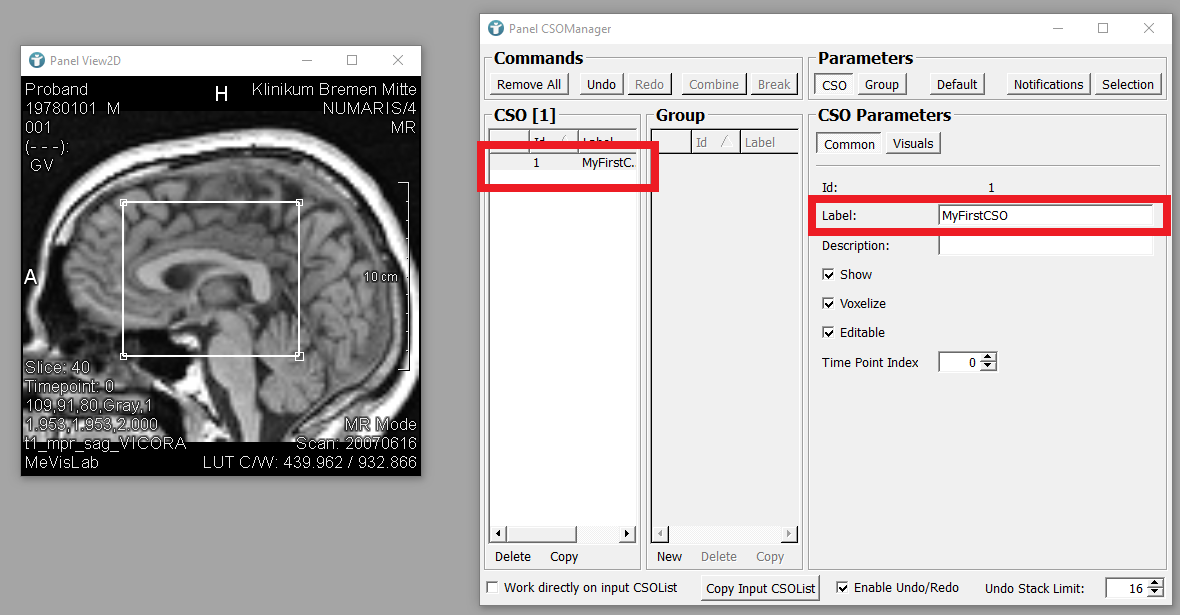

If you now open the panel of the CSOManager, you will find one CSO, the one we created before. If you like, you can name the CSO.

Change Properties of CSO

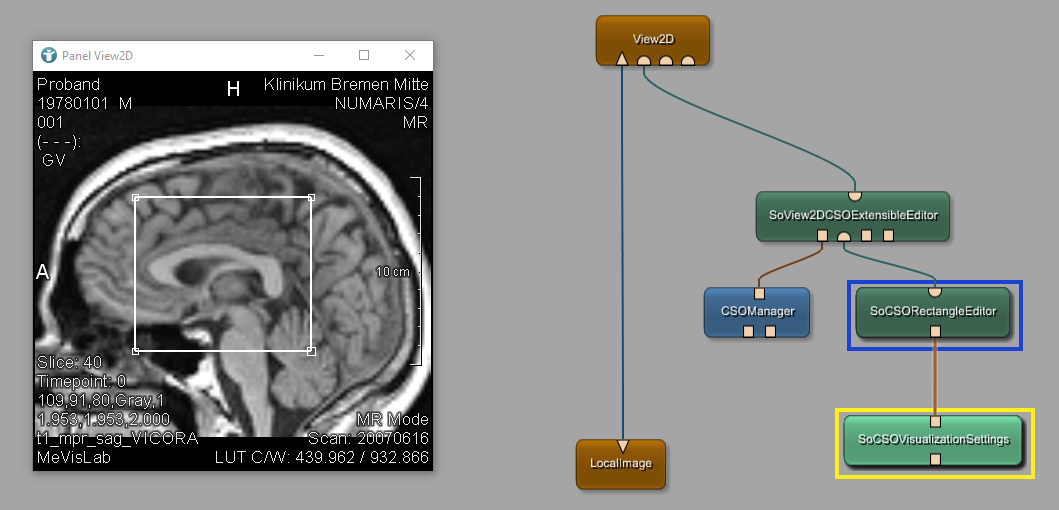

Now, add the module SoCSOVisualizationSettings to your workspace and connect it as shown below.

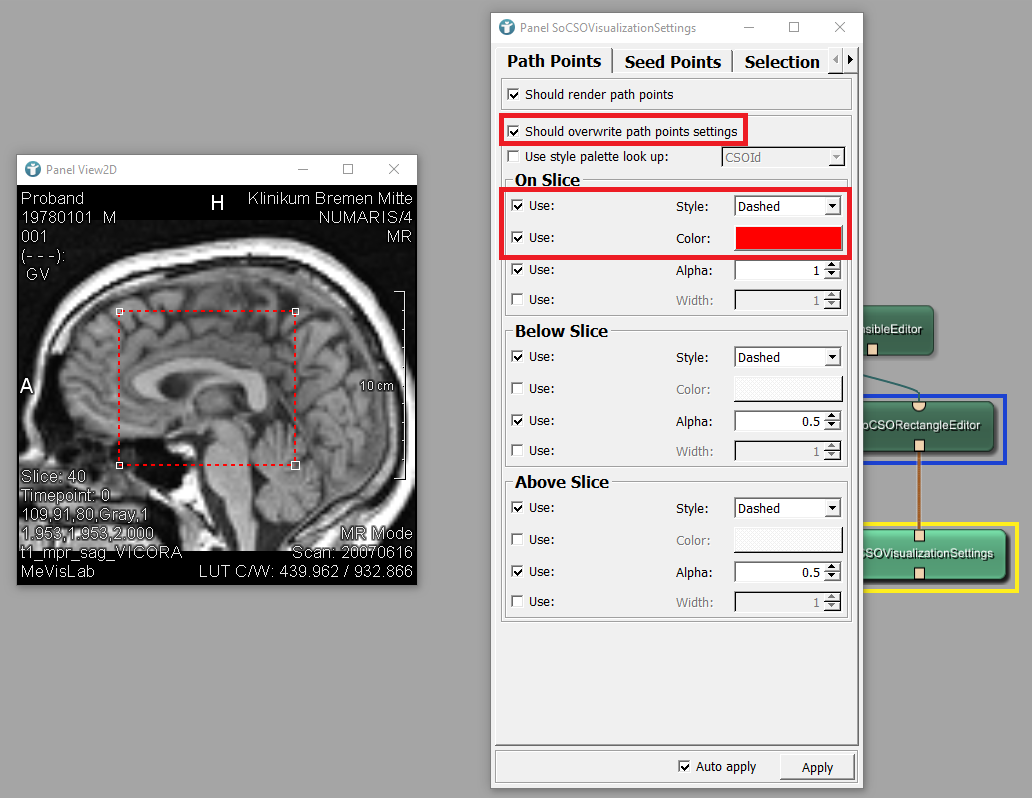

Open the module to change the visualization settings of your CSOs. In this case, we change the line style (to dashed lines) and the color (to be red). Tick the Auto apply checkbox at the bottom or press Apply.

CSOs of Different Shapes

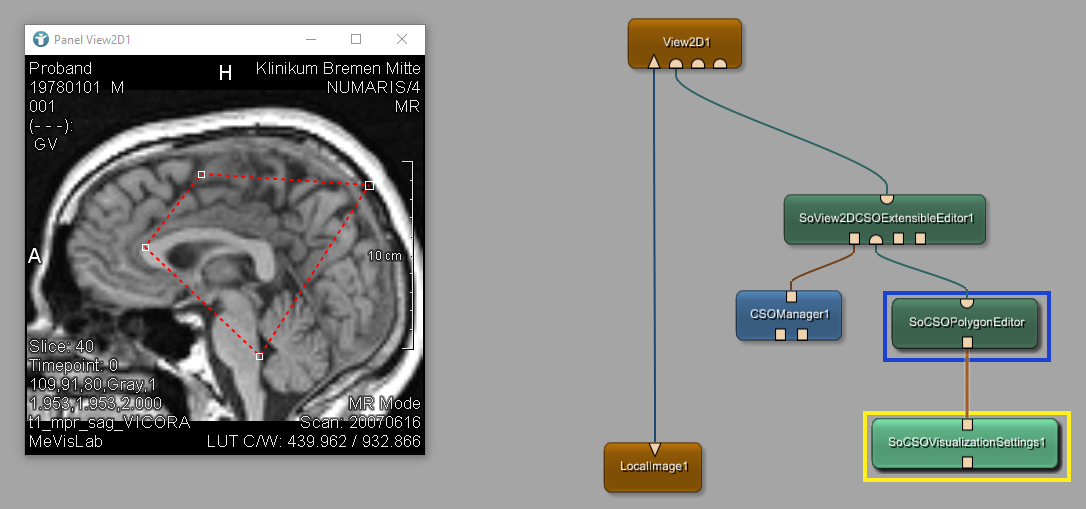

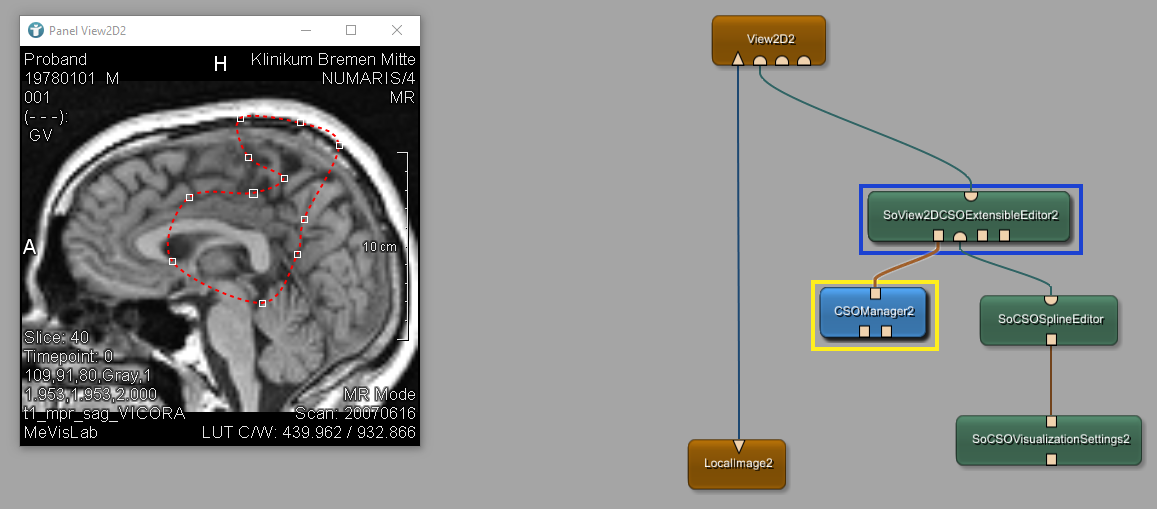

Exchange the module SoCSORectangleEditor with another editor, for example, the SoSCOPolygonEditor or SoCSOSplineEditor. Other editors allow to draw CSOs of other shapes. For polygon-shaped CSOs or CSOs consisting of splines, left-click on the image viewer to add new points to form the CSO. Double-click to finish the CSO.

Draw Filled CSOs

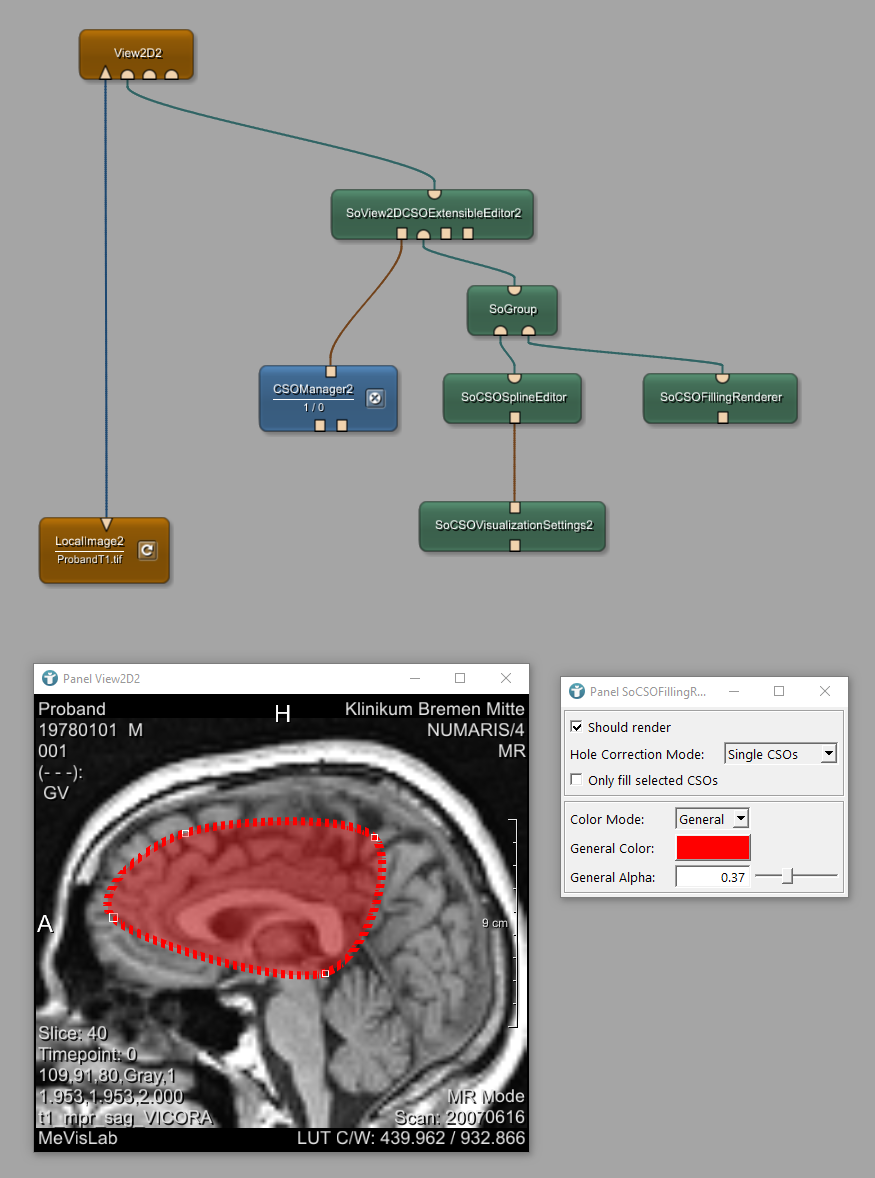

If you want to fill the shapes, you can simply add a SoCSOFillingRenderer module to your SoView2DCSOExtensibleEditor.

Exercises

Create CSOs with green color and ellipsoid shapes.

Summary

• CSOs can be created using a SoCSO*Editor.
• CSOs of different shapes can be created.
• A list of CSOs can be stored in the CSOManager.
• Properties of CSOs can be changed using SoCSOVisualizationSettings.

   Download .mlab file here.
