Example 7: Add 3D Viewer to OrthoView2D

     This example is also available on YouTube.

Introduction

In this example we will use the OrthoView2D module and add a 3D viewer to the layout Cube.

Steps to Do

Develop Your Network

Add the modules LocalImage and OrthoView2D to your workspace and connect them.

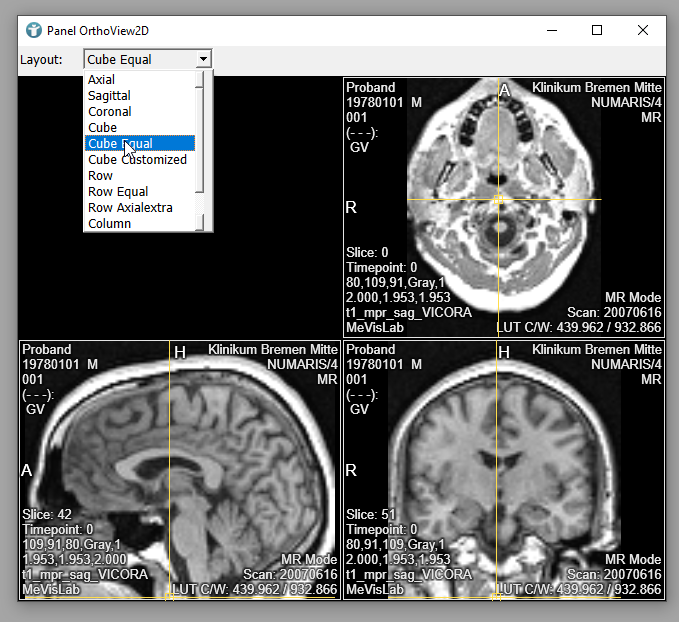

The OrthoView2D module allows you to select multiple layouts. Select layout Cube Equal. The layout shows your image in three orthogonal viewing directions. The top left segment remains empty.

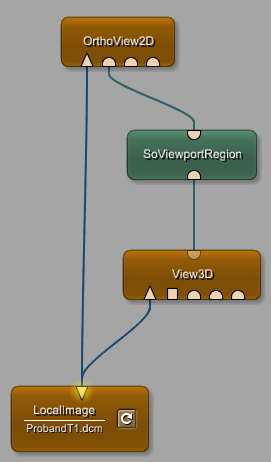

We now want to use a 3D rendering in the top left segment whenever the layout Cube Equal is chosen. Add a View3D and a SoViewportRegion module to your workspace. Connect the LocalImage with your View3D. The image is rendered in 3D. Hit SPACE on your keyboard to make the hidden output of the View3D module visible. Connect it with your SoViewportRegion and connect the SoViewportRegion with the inInvPreLUT input of the OrthoView2D.

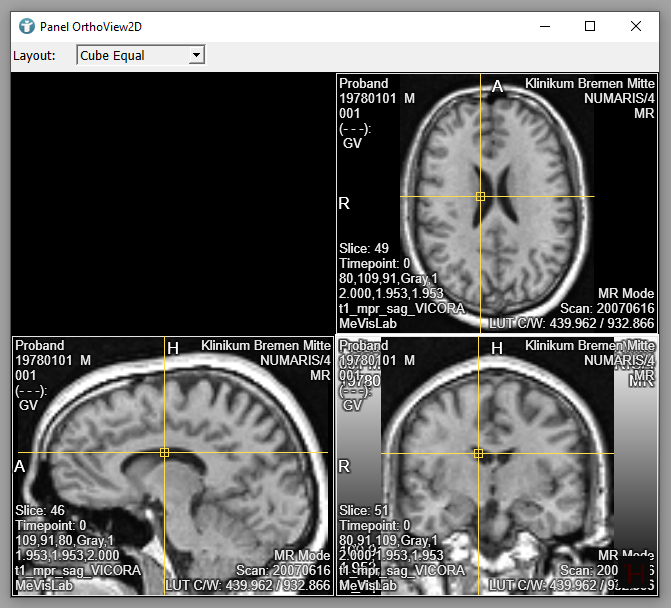

Open the OrthoView2D and inspect your layout.

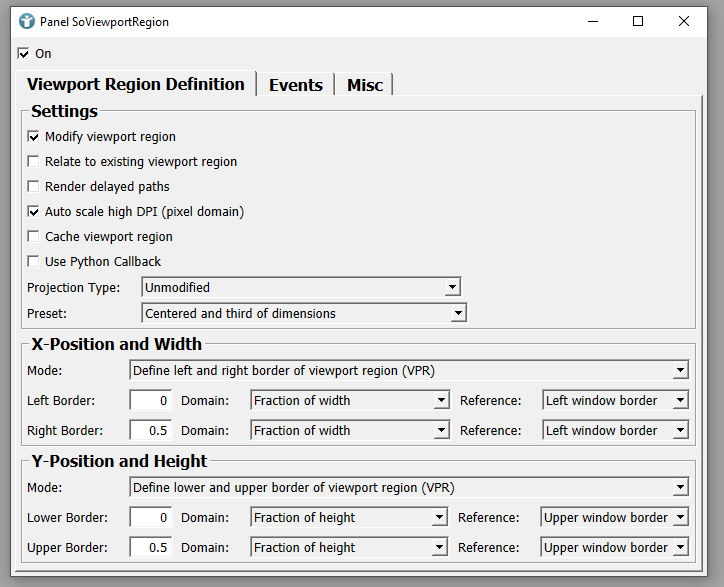

You can see your View3D being visible in the bottom right segment of the layout behind the coronal view of the image. Open the panel of the SoViewportRegion module. In section X-Position and Width, set Left Border to 0 and Right Border to 0.5. In section Y-Position and Height, set Lower Border to 0 and Upper Border to 0.5. Also check Render delayed paths.

The View3D image is now rendered to the top left segment of the OrthoView2D, because the module SoViewportRegion renders a subgraph into a specified viewport region (VPR). The problem is: We cannot rotate and pan the 3D object, because there is no camera interaction available after adding the SoViewportRegion. The camera interaction is consumed by the View3D module before it can be used by the viewport.

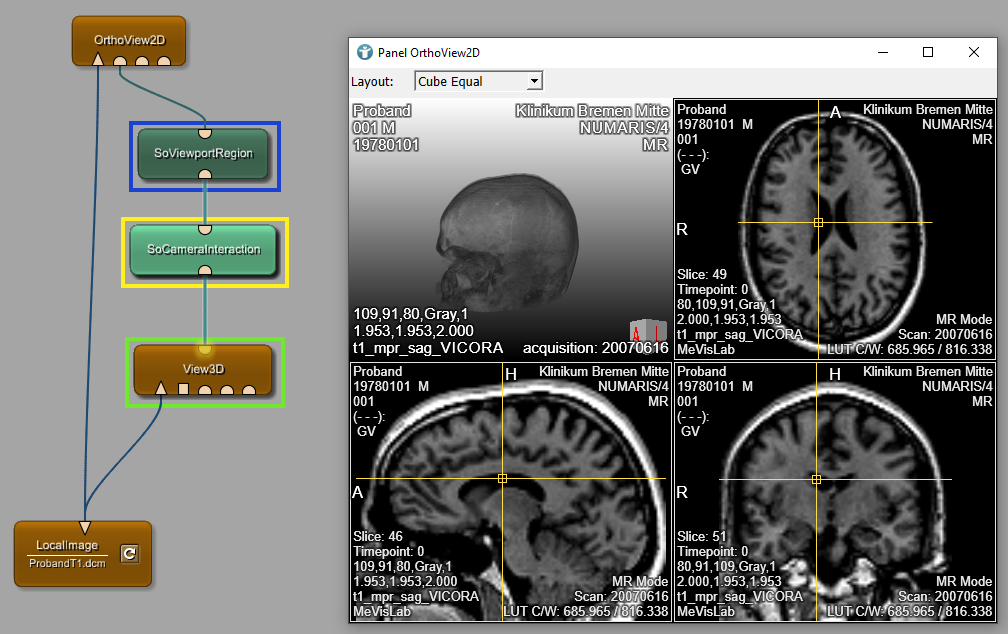

Add a SoCameraInteraction module between the View3D and the SoViewportRegion. You can now interact with your 3D scene but the rotation is not executed on the center of the object. Trigger ViewAll on your SoCameraInteraction module.

You have now successfully added the View3D to the OrthoView2D, but there is still a problem remaining: If you change the layout to something different than LAYOUT_CUBE_EQUAL, the 3D content remains visible.

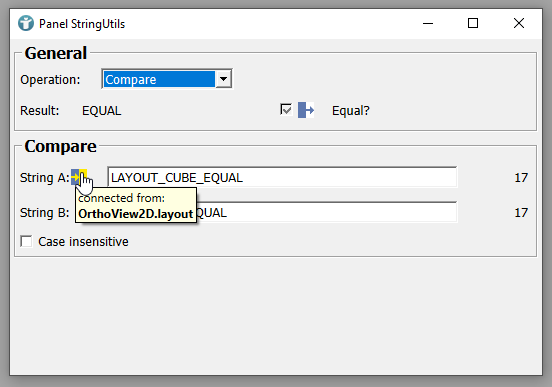

We can use a StringUtils module to resolve that. Set Operation to Compare and draw a parameter connection from the field OrthoView2D.layout to the field StringUtils.string1. The currently selected layout is displayed as String A. Enter LAYOUT_CUBE_EQUAL as String B. Now, draw a parameter connection from the field StringUtils.boolResult to the field SoViewportRegion.on.

If the selected layout in OrthoView2D now matches the string LAYOUT_CUBE_EQUAL (the field boolResult of the StringUtils module is TRUE*), the SoViewportRegion is turned on. In any other case, the 3D segment is not visible.

Summary

• The module SoViewportRegion renders a subgraph into a specified viewport region (VPR).
