Step 3: Prototyping - User Interface and Python Scripting

     This example is also available on YouTube.

Introduction

In this step, we will develop a user interface and add Python scripting to the macro module you created in Step 2.

Steps to Do

Develop the User Interface

A mockup of the user interface you are going to develop is available here. The interface provides the possibility to load files and shows a 2D and a 3D viewer. In addition to that, some settings and information for our final application are available.

Search for your macro module and add it to your workspace. Right-click and select [ Related Files → <MACRO_MODULE_NAME>.script ].

The MeVisLab text editor MATE opens showing the .script file of your module.

Layout

You can see that the interface is divided into four parts in vertical direction:

• Source or file/directory selection
• Viewing (2D and 3D)
• Settings
• Info

Inside the vertical parts, the elements are placed next to each other horizontally.

Add a Window section to your .script file. Inside the Window, we need a Vertical for the four parts and a Box for each part. Name the boxes “Source”, “Viewing”, “Settings”, and “Info”. The layout inside each Box shall be Horizontal.

In addition to that, we define the minimal size of the Window as 400 x 300 pixels.

Window {
    // Define minimum width and height
    minimumWidth  = 400
    minimumHeight = 300

    Category {
        // Vertical Layout and 4 Boxes with Horizontal Layout
        Vertical {
            Box Source {
                layout = Horizontal
            }
            Box Viewing {
                layout = Horizontal
            }
            Box Settings {
                layout = Horizontal
            }
            Box Info {
                layout = Horizontal
            }
        }
    }
}

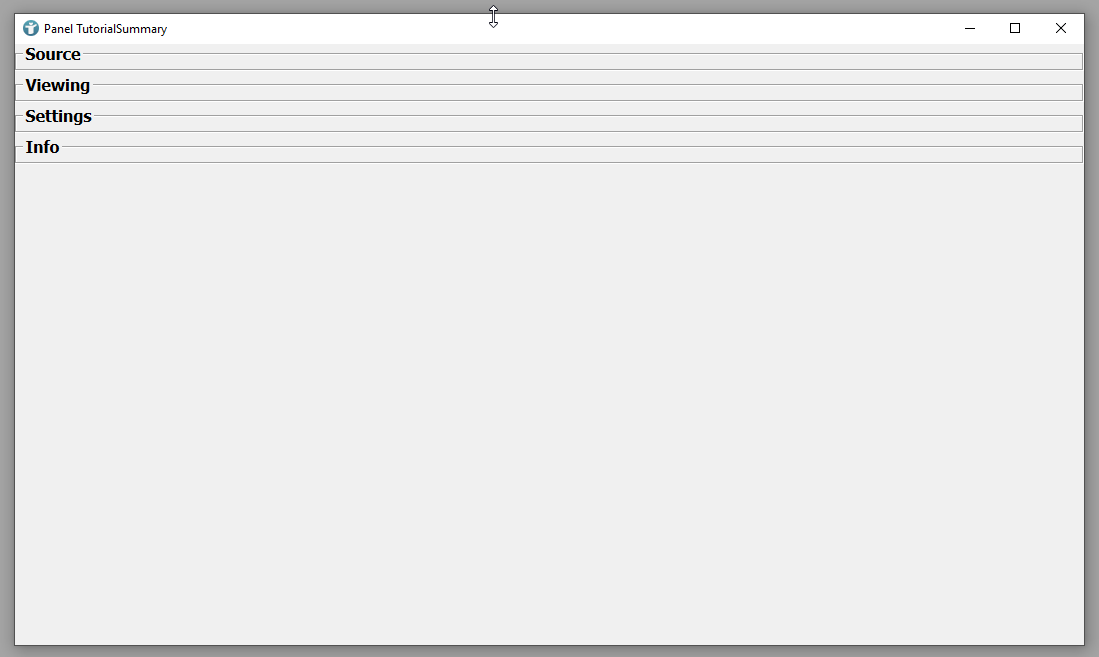

You can preview your initial layout in MeVisLab by double-clicking your module .

You can see the four vertical aligned parts as defined in the .script file. Now, we are going to add the content of the boxes.

Adding the UI Elements

Source

The Source Box shall provide the possibility to select a file for loading into the viewers. You have many options to achieve that in MeVisLab and Python. The easiest way is to reuse the existing field of the LocalImage module in your internal network.

Add a field to the Parameters section of your .script file. Name the field openFile and set type to String and internalName to LocalImage.name.

Then, add another field to your Box for the Source and use the field name from Parameters section, in this case openFile. Set browseButton = Yes and browseMode = open and save your script.

Interface {
    Inputs {}
    Outputs {}
    Parameters {
      Field openFile {
          type         = String
          internalName = LocalImage.name
      }
    }
}

...

Window {
    // Define minimum width and height
    minimumWidth  = 400
    minimumHeight = 300

    Category {
        // Vertical Layout and 4 Boxes with Horizontal Layout
        Vertical {
            Box Source {
                layout = Horizontal
                Field openFile {
                    browseButton = Yes
                    browseMode   = open
                }
            }
            Box Viewing {
                layout = Horizontal
            }
            Box Settings {
                layout = Horizontal
            }
            Box Info {
                layout = Horizontal
            }
        }
    }
}

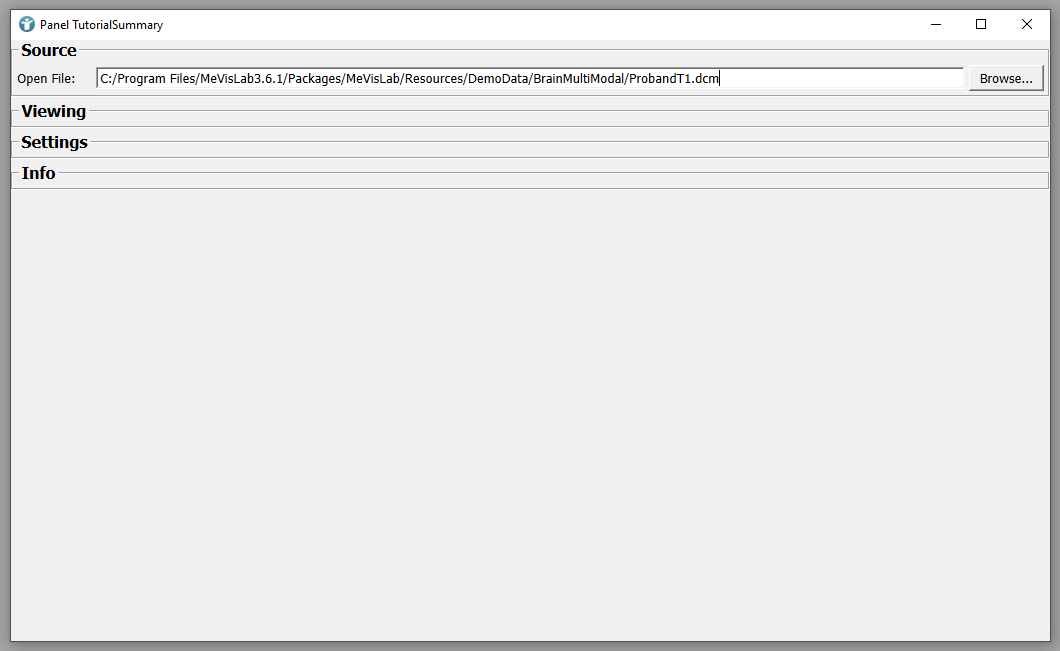

Again, you can preview your user interface in MeVisLab directly. You can already select a file to open. The image is available at the output of the LocalImage module in your internal network but the viewers are missing in our interface.

Viewing

Add the two viewer modules to the Viewing section of your .script file and define their field as View2D.self and SoExaminerViewer.self. Set expandX = Yes and expandY = Yes for both viewing modules. We want them to resize in the case the size of the Window changes.

Set the 2D viewer’s type to SoRenderArea and the 3D viewer’s type to SoExaminerViewer and inspect your new user interface in MeVisLab.

...

    Box Viewing {
        layout = Horizontal
        Viewer View2D.self {
            expandX = Yes
            expandY = Yes
            type    = SoRenderArea
        }
        Viewer SoExaminerViewer.self {
            expandX = Yes
            expandY = Yes
            type    = SoExaminerViewer
        }
    }

...

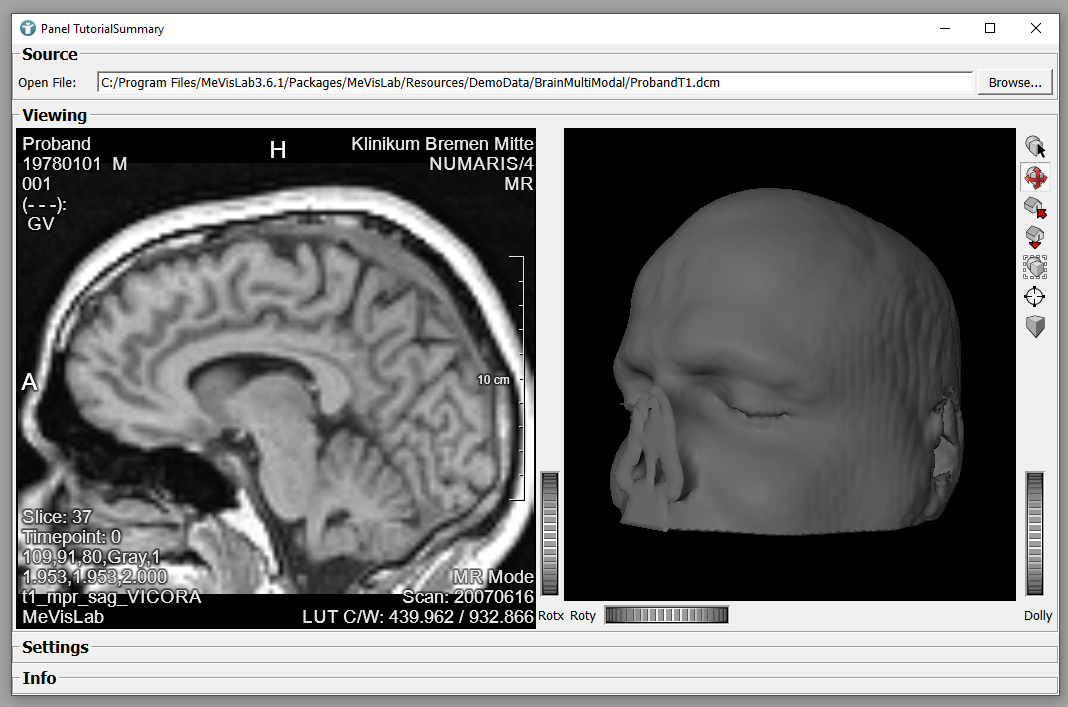

The images selected in the Source section are shown in 2D and 3D. We simply reused the existing fields and viewers from your internal network and are already able to interact with the images. As the View2D of your internal network itself provides the possibility to accept markers and starts the RegionGrowing, this is also already possible and the segmentations are shown in 2D and 3D.

Settings

Let’s define the Settings section. Once again, we first define the necessary fields. For automated tests that we are going to develop later, it makes sense to make some of the fields of the internal network available from outside.

The following shall be accessible as Field for our macro module:

• Filename to be opened
• Color of the 2D overlay and 3D segmentation
• Transparency of the 3D image
• Threshold to be used for RegionGrowing
• Isovalue of the 3D surface to use for rendering
• Position of the marker to use for RegionGrowing
• Selection for 3D visualization (image, segmentation, or both)
• Trigger to reset the application to its initial state

We already defined the filename as a field. Next we want to change the color of the overlay. Add another field to your Parameters section as selectOverlayColor. Define internalName = SoView2DOverlay.baseColor and type = Color. You may also define a title for the field, for example, Color.

The baseColor field of the SoView2DOverlay already has a parameter connection to the color of the SoWEMRendererSegmentation. This has been done in the internal network. The defined color is used for 2D and 3D automatically.

Interface {
    Inputs {}
    Outputs {}
    Parameters {
        ...
        Field selectOverlayColor {
            internalName = SoView2DOverlay.baseColor
            type         = Color
        }
    }
}

...

    Box Settings {
        layout = Horizontal
        Field selectOverlayColor {
            title   = Color
        }
    }

...

The next elements follow the same rules; therefore, the final script will be available at the end for completeness.

In order to set the transparency of the 3D image, we need another field reusing the SoWEMRendererImage.faceAlphaValue. Add a field imageAlpha to the Parameters section. Define internalName = SoWEMRendererImage.faceAlphaValue, type = Integer, min = 0, and max = 1.

Add the field to the Settings Box and set step = 0.1 and slider = Yes.

For the RegionGrowing threshold, add the field thresholdInterval to Parameters section and set type = Integer, min = 1, max = 100, and internalName = RegionGrowing.autoThresholdIntervalSizeInPercent.

Add the field to the Settings UI, and define step = 0.1 and slider = Yes.

Define a field isoValueImage in the Parameters section and set internalName = IsoSurfaceImage.isoValue, type = Integer, min = 1, and max = 1000.

In the Settings section of the UI, set step = 2 and slider = Yes.

Interface {
    Inputs {}
    Outputs {}
    Parameters {
        Field openFile {
            type         = String
            internalName = LocalImage.name
        }
        Field selectOverlayColor {
            internalName = SoView2DOverlay.baseColor
            type         = Color
        }
        Field imageAlpha {
            internalName = SoWEMRendererImage.faceAlphaValue
            type         = Integer
            min          = 0
            max          = 1
        }
        Field thresholdInterval {
            internalName = RegionGrowing.autoThresholdIntervalSizeInPercent
            type         = Integer
            min          = 0
            max          = 100
        }
        Field isoValueImage  {
            internalName = IsoSurfaceImage.isoValue
            type         = Integer
            min          = 0
            max          = 1000
        }
    }
}

Commands {
    source = $(LOCAL)/TutorialSummary.py
}

Window {
    // Define minimum width and height
    minimumWidth  = 400
    minimumHeight = 300

    Category {
        // Vertical Layout and 4 Boxes with Horizontal Layout
        Vertical {
            Box Source {
                layout = Horizontal
                Field openFile {
                    browseButton = Yes
                    browseMode   = open
                }
            }
            Box Viewing {
                layout = Horizontal
                Viewer View2D.self {
                    expandX = Yes
                    expandY = Yes
                    type    = SoRenderArea
                }
                Viewer SoExaminerViewer.self {
                    expandX = Yes
                    expandY = Yes
                    type    = SoExaminerViewer
                }
            }
            Box Settings {
                layout = Horizontal
                Field selectOverlayColor {
                    title   = Color
                }
                Field imageAlpha {
                    step    = 0.1
                    slider  = Yes
                }
                Field thresholdInterval {
                    step    = 0.1
                    slider  = Yes
                }
                Field isoValueImage {
                    step    = 2
                    slider  = Yes
                }
            }
            Box Info {
                layout = Horizontal
            }
        }
    }
}

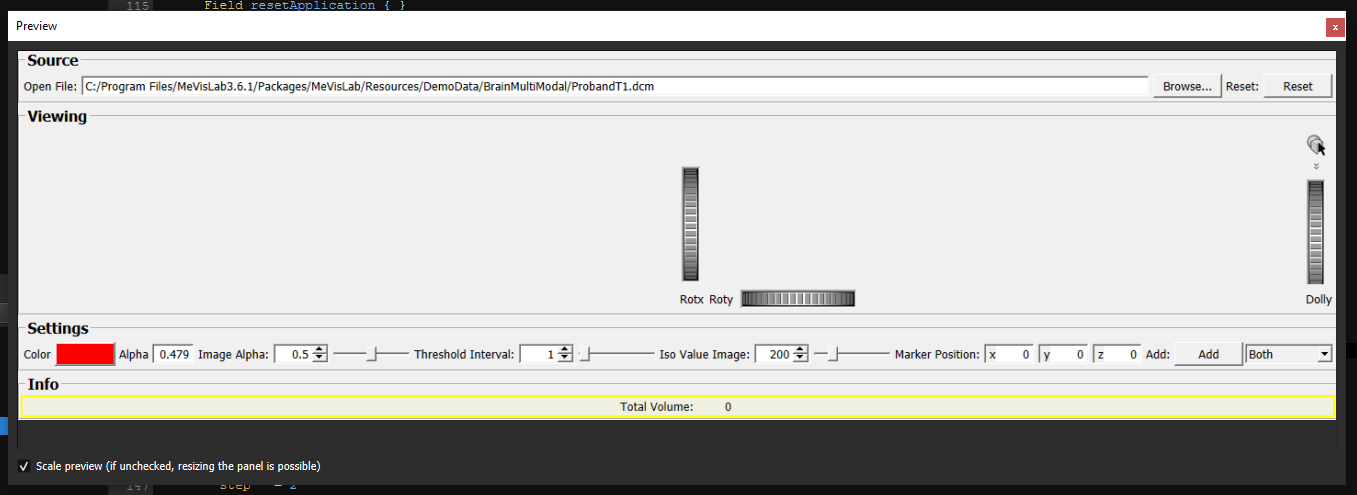

Your user interface of the macro module should now look similar to this:

For the next elements, we require Python scripting. Nevertheless, you are already able to use your application and perform the basic functionalities without writing any line of code.

Python Scripting

Python scripting is always necessary in the case you do not want to reuse an existing field for your user interface but implement functions to define what happens in the case of any event.

Events can be raised by the user (e.g., by clicking a button) or by the application itself (e.g., when the window is opened).

3D Visualization Selection

You will now add a selection possibility for the 3D viewer. This allows you to define the visibility of the 3D objects File, Segmented, or Both.

Add another field to your Parameters section. Define the field as selected3DView and set type = Enum and values to Segmented, File and Both.

Add a ComboBox to your Settings and use the field name defined above. Set alignX = Left> and editable = False and open the Window of the macro module in MeVisLab.

The values of the field can be selected, but nothing happens in our viewers. We need to implement a FieldListener in Python that reacts on any value changes of the field selected3DView.

Open your script file and go to the Commands section. Add a FieldListener and reuse the name of our internal field selected3DView. Add a Command to the FieldListener calling a Python function viewSelectionChanged.

Commands {
    source = $(LOCAL)/TutorialSummary.py

    FieldListener selected3DView {
        command = viewSelectionChanged
    }
}

Right-click the command select [ Create Python Function 'viewSelectionChanged' ]. MATE automatically opens the Python file of your macro module and creates a function viewSelectionChanged.

from mevis import *

def viewSelectionChanged(field):
    if field.value == "Segmented":
        ctx.field("SoSwitch.whichChild").value = 0
    if field.value == "File":
        ctx.field("SoSwitch.whichChild").value = 1
    if field.value == "Both":
        ctx.field("SoSwitch.whichChild").value = 2

The function sets the SoSwitch to the child value depending on the selected field value from the ComboBox and you should now be able to switch the 3D rendering by selecting an entry in the user interface.

Setting the Marker

The marker for the RegionGrowing is defined by the clicked position as Vector3. Add another field markerPosition to the Parameters section and define type = Vector3.

Then, add a trigger field applyMarker to your Parameters section. Set type = Trigger and title = Add.

...
    Field markerPosition {
        type         = Vector3
    }
    Field applyMarker {
        type         = Trigger
        title        = Add
    }
...

Add another FieldListener to both fields:

...
    FieldListener markerPosition {
        command = insertPosition
    }
    FieldListener applyMarker {
        command = applyPosition
    }
...

Finally, add both fields to the Settings section of your user interface:

...
    Field markerPosition {}
    Field applyMarker {}
...

The Python functions should look like this:

...
def insertPosition(field):
    ctx.field("SoView2DMarkerEditor.newPosXYZ").value = field.value

def applyPosition():
    ctx.field("SoView2DMarkerEditor.useInsertTemplate").value = True
    ctx.field("SoView2DMarkerEditor.add").touch()
...

Whenever the field markerPosition changes its value, the value is automatically applied to the SoView2DMarkerEditor.newPosXYZ. Clicking SoView2DMarkerEditor.add adds the new position to the SoView2DMarkerEditor and the region growing starts.

Reset

Add a new field resetApplication to the Parameters section and set type = Trigger and title = Reset.

Add another FieldListener to your Commands and define command = resetApplication.

Add the field to your Source region.

...
  Parameters {
      Field resetApplication {
          type         = Trigger
          title        = Reset
      }
  }
...
Commands {
    ...
    FieldListener resetApplication {
        command = resetApplication
    }
}
...
    Box Source {
        layout = Horizontal
        Field openFile {
            browseButton = Yes
            browseMode   = open
        }
        Field resetApplication { }
    }
...

What shall happen when we reset the application?

• The loaded image shall be unloaded, the viewer shall be empty
• The marker shall be reset if available

Add the Python function resetApplication and implement the following:

from mevis import *

def resetApplication():
    ctx.field("RegionGrowing.clear").touch()
    ctx.field("SoView2DMarkerEditor.deleteAll").touch()
    ctx.field("LocalImage.close").touch()

You can also reset the application to initial state by adding a initCommand to your Window. Call the resetApplication function here, too, and whenever the window is opened, the application is reset to its initial state.

Window {
    // Define minimum width and height
    minimumWidth  = 400
    minimumHeight = 300
    initCommand   = resetApplication
  ...
}

This can also be used for setting/resetting to default values of the application. For example, update your Python function resetApplication the following way:

from mevis import *

def resetApplication():
    ctx.field("RegionGrowing.clear").touch()
    ctx.field("SoView2DMarkerEditor.deleteAll").touch()
    ctx.field("LocalImage.close").touch()
    ctx.field("imageAlpha").value = 0.5
    ctx.field("thresholdInterval").value = 1.0
    ctx.field("isoValueImage").value = 200
    ctx.field("selected3DView").value = "Both"

Information

In the end, we want to provide some information about the volume of the segmented area (in ml).

Add one more field to your Parameters section and reuse the internal network fields CalculateVolume.totalVolume. Set field to editable = False

Add the field to the Info section of your window.

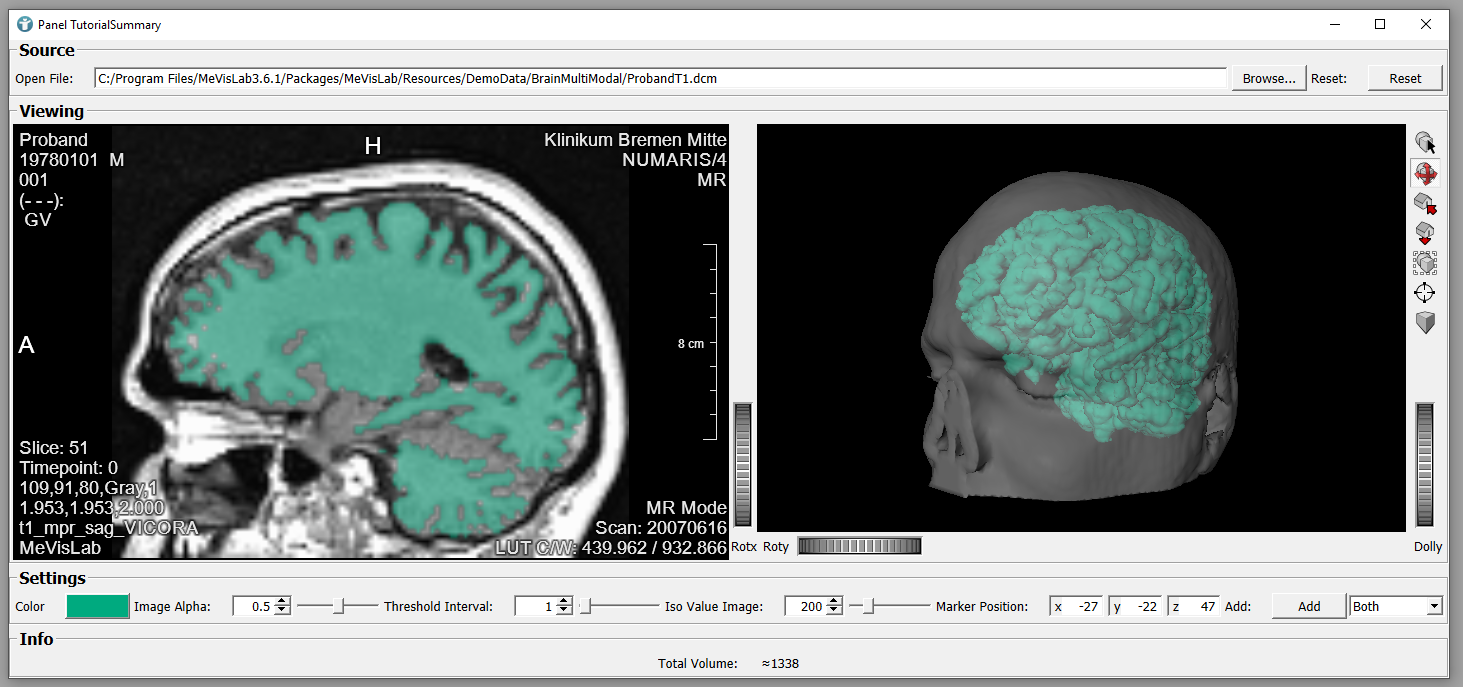

Opening the window of your macro module in MeVisLab now provides all functionalities we wanted to achieve. You can also play around in the window and define some additional boxes or other MDL controls but the basic application prototype is now finished.

MeVisLab GUI Editor

MATE provides a powerful GUI editor showing a preview of your current user interface and allowing to reorder elements in the UI via drag and drop. In MATE, open [ Extras → Enable GUI Editor ].

Changing the layout via drag and drop automatically adapts your .script file. Save and reload the script and your changes are applied.

Final Script and Python Files

Interface {
    Inputs {}
    Outputs {}
    Parameters {
        Field openFile {
            type         = String
            internalName = LocalImage.name
        }
        Field selectOverlayColor {
            internalName = SoView2DOverlay.baseColor
            type         = Color
        }
        Field imageAlpha {
            internalName = SoWEMRendererImage.faceAlphaValue
            type         = Integer
            min          = 0
            max          = 1
        }
        Field thresholdInterval {
            internalName = RegionGrowing.autoThresholdIntervalSizeInPercent
            type         = Integer
            min          = 0
            max          = 100
        }
        Field isoValueImage  {
            internalName = IsoSurfaceImage.isoValue
            type         = Integer
            min          = 0
            max          = 1000
        }
        Field selected3DView {
            type   = Enum
            items {
                item Segmented {}
                item File {}
                item Both {}
            }
        }
        Field totalVolume {
            internalName = CalculateVolume.totalVolume
            editable     = False
        }
        Field resetApplication {
            type  = Trigger
            title = Reset
        }
        Field markerPosition {
            type         = Vector3
        }
        Field applyMarker {
            type  = Trigger
            title = Add
        }
    }
}

Commands {
    source = $(LOCAL)/<MACRO_NAME>.py

    FieldListener selected3DView {
        command = viewSelectionChanged
    }
    FieldListener resetApplication {
        command = resetApplication
    }
    FieldListener markerPosition {
        command = insertPosition
    }
    FieldListener applyMarker {
        command = applyPosition
    }
}

Window {
    // Define minimum width and height
    minimumWidth  = 400
    minimumHeight = 300
    initCommand   = resetApplication

    Category {
        // Vertical Layout and 4 Boxes with Horizontal Layout
        Vertical {
            Box Source {
              layout = Horizontal
              Field openFile {
                  browseButton = Yes
                  browseMode   = open
              }
              Field resetApplication { }
            }
            Box Viewing {
              layout = Horizontal
              Viewer View2D.self {
                  expandX = Yes
                  expandY = Yes
                  type    = SoRenderArea
              }
              Viewer SoExaminerViewer.self {
                  expandX = Yes
                  expandY = Yes
                  type    = SoExaminerViewer
              }
            }
            Box Settings {
              layout = Horizontal
              Field selectOverlayColor {
                  title   = Color
              }
              Field imageAlpha {
                  step   = 0.1
                  slider = Yes
              }
              Field thresholdInterval {
                  step   = 0.1
                  slider = Yes
              }
              Field isoValueImage {
                  step   = 2
                  slider = Yes
              }
              Field markerPosition {}
              Field applyMarker {}
              ComboBox selected3DView {
                  alignX   = Left
                  editable = False
              }
            }
            Box Info {
                layout    = Horizontal
                Field totalVolume {}
            }
        }
    }
}

from mevis import *

def viewSelectionChanged(field):
    if field.value == "Segmented":
        ctx.field("SoSwitch.whichChild").value = 0
    if field.value == "File":
        ctx.field("SoSwitch.whichChild").value = 1
    if field.value == "Both":
        ctx.field("SoSwitch.whichChild").value = 2

def resetApplication():
    ctx.field("RegionGrowing.clear").touch()
    ctx.field("SoView2DMarkerEditor.deleteAll").touch()
    ctx.field("LocalImage.close").touch()
    ctx.field("imageAlpha").value = 0.5
    ctx.field("thresholdInterval").value = 1.0
    ctx.field("isoValueImage").value = 200
    ctx.field("selected3DView").value = "Both"

def insertPosition(field):
    ctx.field("SoView2DMarkerEditor.newPosXYZ").value = field.value

def applyPosition():
    ctx.field("SoView2DMarkerEditor.useInsertTemplate").value = True
    ctx.field("SoView2DMarkerEditor.add").touch()

Summary

• You now added a user interface to your macro module.
• The window opens automatically on double-click .
• Fields defined in the Parameters section can be modified in the MeVisLab Module Inspector.
• Python allows to implement functions executed on events raised by the user or by the application itself.

   Download Archive here.
