Example 2: Masking Images

     This example is also available on YouTube.

Introduction

The background of medical images is black for most cases. In the case an image is inverted or window/level values are adapted, these black voxels outside clinical relevant voxels might become very bright or even white.

Being in a dark room using a large screen, the user might be blended by these large white regions.

Image masking is a very good way to select a defined region where image processing shall be applied. A mask allows to define a region (the masked region) to allow image modifications whereas voxels outside the mask remain unchanged.

Steps to Do

Develop Your Network

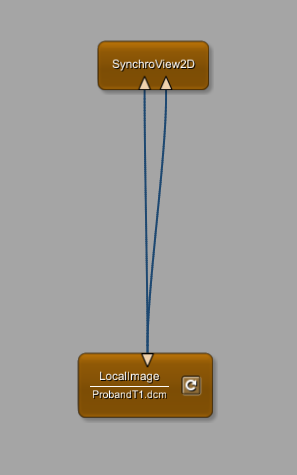

Add a LocalImage and a SynchroView2D module to your network and connect the modules as seen below.

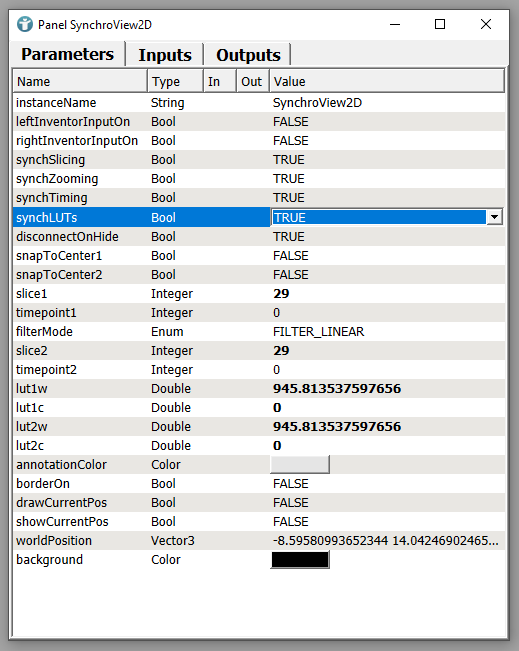

Open the Automatic Panel of the SynchroView2D module via context menu and selecting [ Show Window → Automatic Panel ]. Set the field synchLUTs to TRUE.

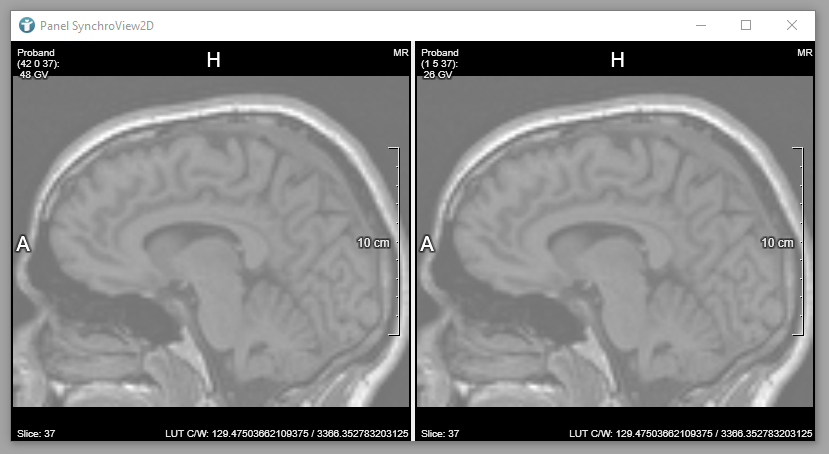

Double-click the SynchroView2D and change window/level values via right mouse button . You can see that the background of your images gets very bright and changes based on the LUT are applied to all voxels of your input image - even on the background. Hovering your mouse over the image(s) shows the current gray value under your cursor in Hounsfield Unit (HU).

Hovering the mouse over black background voxels shows a value between 0 and about 60. This means we want to create a mask that only allows modifications on voxels having a gray value larger than 60.

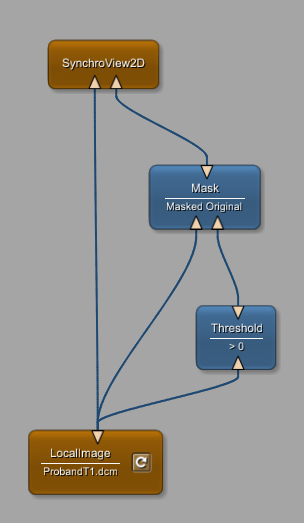

Add a Mask and a Threshold module to your workspace and connect them as seen below.

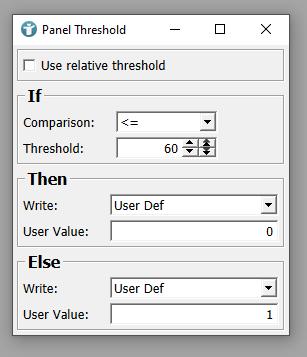

Changing the window/level values in your viewer still also changes background voxels. The Threshold module still leaves the voxels as is because the threshold value is configured as larger than 0. Open the Automatic Panel of the modules Threshold and Mask via double-click and set the values as seen below.

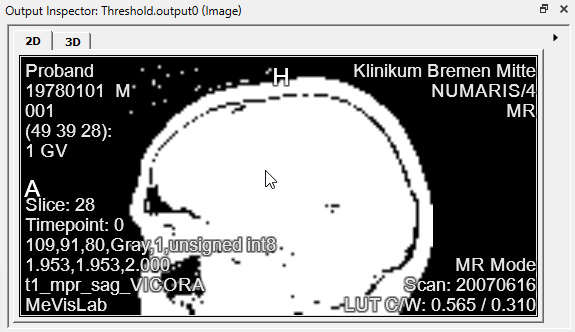

Now all voxels having a HU value lower or equal 60 are set to 0, all others are set to 1. The resulting image from the Threshold module is a binary image that can now be used as a mask by the Mask module.

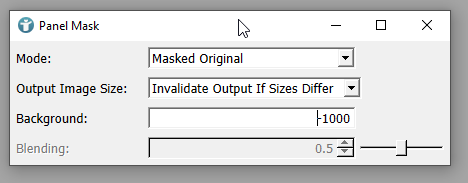

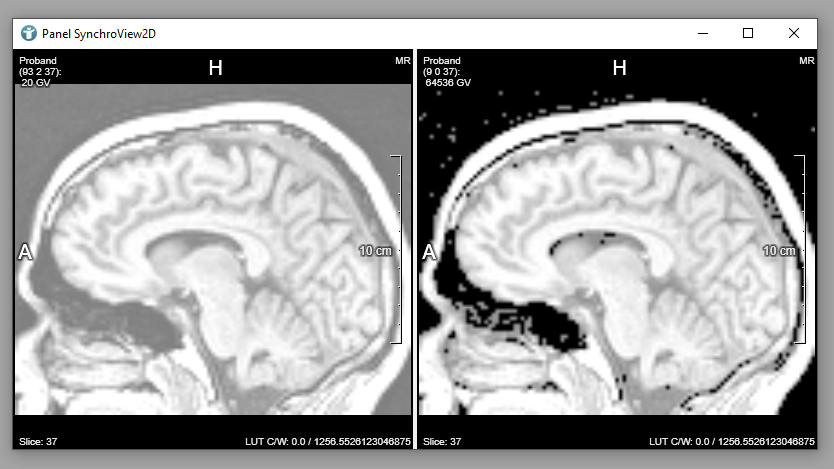

The Mask module is configured to use the Masked Original image. Changing the window/level values in your images now, you can see that the background voxels are not affected anymore (at least as long as you do not reach a very large value).

Summary

• The module Threshold applies a relative or an absolute threshold to a voxel image. It can be defined what should be written to those voxels that pass or fail the adjustable comparison.
• The module Mask masks the image of input one with the mask at input two.
• A mask can be used to filter voxels inside images.

   Download .mlab file here.
